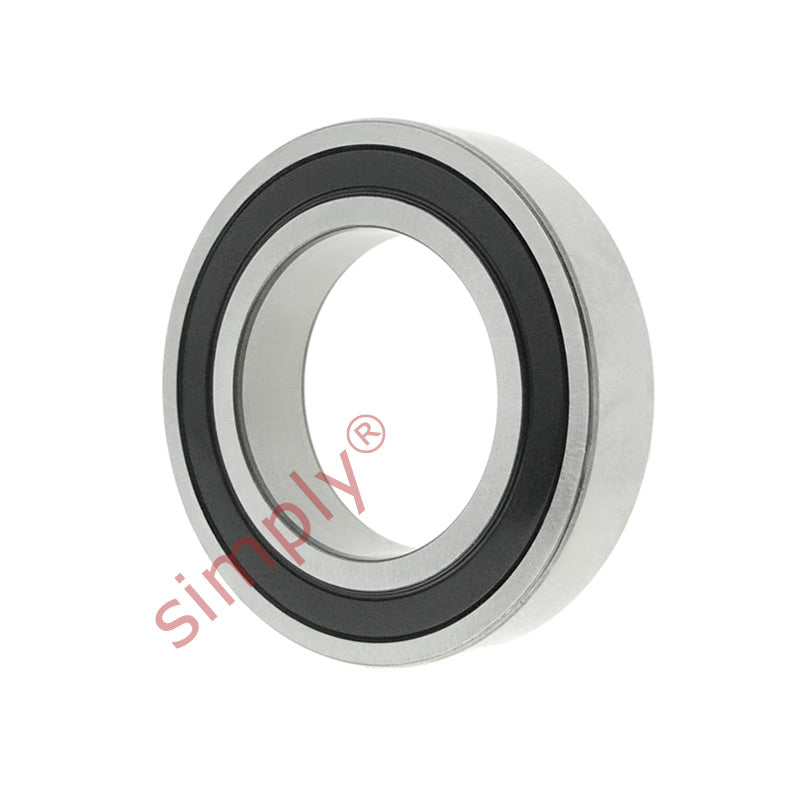

Major Branded 618172RSR Rubber Sealed Thin Deep Groove Ball Bearing 85x110x13mm

SKU: 61817-2RSR-MB

Major Branded 618172RSR Rubber Sealed Thin Deep Groove Ball Bearing 85x110x13mm

€155.87 ex VAT
€155,87
ex VAT
Equivalent to: 61817NSE 61817DU 61817RS 61817RSH 61817P 61817RSR 61817LU 6817NSE 6817DU 6817RS 6817RSH 6817P 6817RSR 6817LU 618172NSE 61817DDU 618172RS 618172RS1 618172RSH 61817PP 61817LLU 68172NSE 6817DDU 68172RS 68172RS1 68172RSH 6817PP 68172RSR 6817LLU
In stock

Quantity Price Breaks

10+ €138.72
19+ €130.93
29+ €129.37
39+ €127.81
49+ €126.25
74+ €124.70
99+ €116.90
199+ €115.34
249+ €113.79
499+ €112.23
999+ €109.11
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Major Branded 618172RSR Rubber Sealed Thin Deep Groove Ball Bearing 85x110x13mm
SKU: 61817-2RSR-MB

Major Branded 618172RSR Rubber Sealed Thin Deep Groove Ball Bearing 85x110x13mm

€155.87 ex VAT
€155,87
ex VAT

Description

Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing
Seals can be easily removed for applications that only require 1 seal.
Benefits: Prevents moisture and dirt getting into the bearing, lubricated for life

Technical

d = 85mm
D = 110mm
B = 13mm
Dynamic load C = 19.5 kN
Static load Co = 20.8 kN
Fatigue load limit Pu = 0.88 kN
Reference speed = 12000 rpm
Limiting speed = 3400 rpm
Mass = 0.27 kg
d1 = 93.2mm
D2 = 104mm
r1r2 min = 1mm
da min = 89.6
