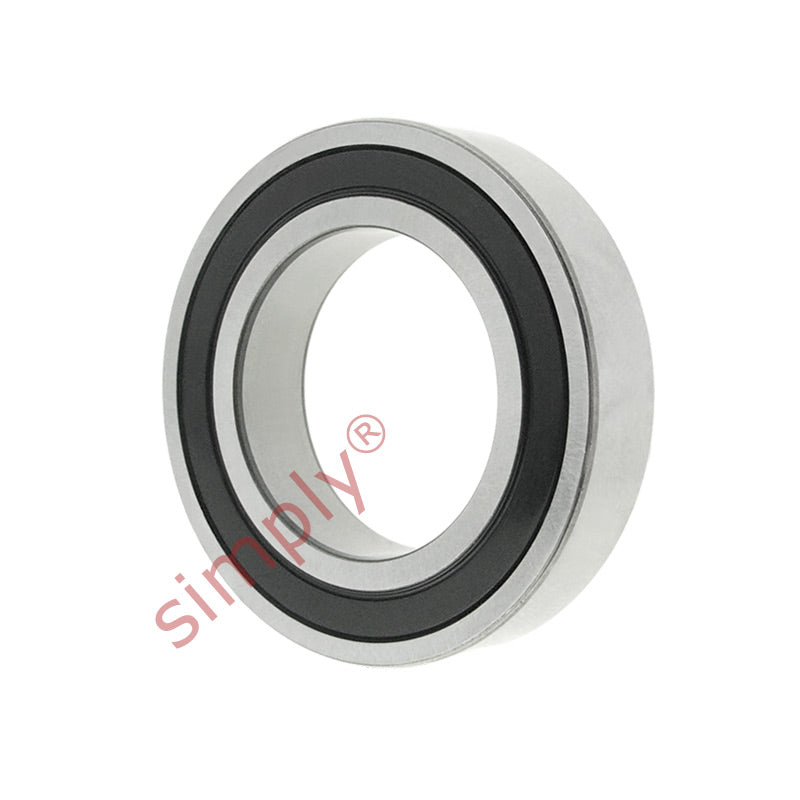

Major Branded 618242RSRC3 Rubber Sealed Thin Deep Groove Ball Bearing 120x150x16mm

SKU: 61824-2RSR/C3-MB

Major Branded 618242RSRC3 Rubber Sealed Thin Deep Groove Ball Bearing 120x150x16mm

€282.35 ex VAT
€282,35
ex VAT
Equivalent to: 61824NSEC3 61824DUC3 61824RSC3 61824RSHC3 61824PC3 61824RSRC3 61824LUC3 6824NSEC3 6824DUC3 6824RSC3 6824RSHC3 6824PC3 6824RSRC3 6824LUC3 618242NSEC3 61824DDUC3 618242RSC3 618242RS1C3 618242RSHC3 61824PPC3 61824LLU 68242NSEC3 6824DDUC3 68242RSC3 68242RS1C3 68242RSHC3 6824PPC3 68242RSRC3 6824LLUC3
In stock

Quantity Price Breaks

10+ €251.29
19+ €237.17
29+ €234.35
39+ €231.53
49+ €228.70
74+ €225.88
99+ €211.76
199+ €208.94
249+ €206.12
499+ €203.29
999+ €197.65
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Major Branded 618242RSRC3 Rubber Sealed Thin Deep Groove Ball Bearing 120x150x16mm
SKU: 61824-2RSR/C3-MB

Major Branded 618242RSRC3 Rubber Sealed Thin Deep Groove Ball Bearing 120x150x16mm

€282.35 ex VAT
€282,35
ex VAT

Description

Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing
Seals can be easily removed for applications that only require 1 seal.
Benefits: Prevents moisture and dirt getting into the bearing, lubricated for life

Technical

d = 120mm
D = 150mm
B = 16mm
Dynamic load C = 29.1 kN
Static load Co = 28 kN
Fatigue load limit Pu = 1.29 kN
Reference speed = 8500 rpm
Limiting speed = 2400 rpm
Mass = 0.65 kg
d2 = 125mm
D2 = 144mm
r1r2 min = 1mm
da min = 125
