SKU: 61903-2RSR-MB

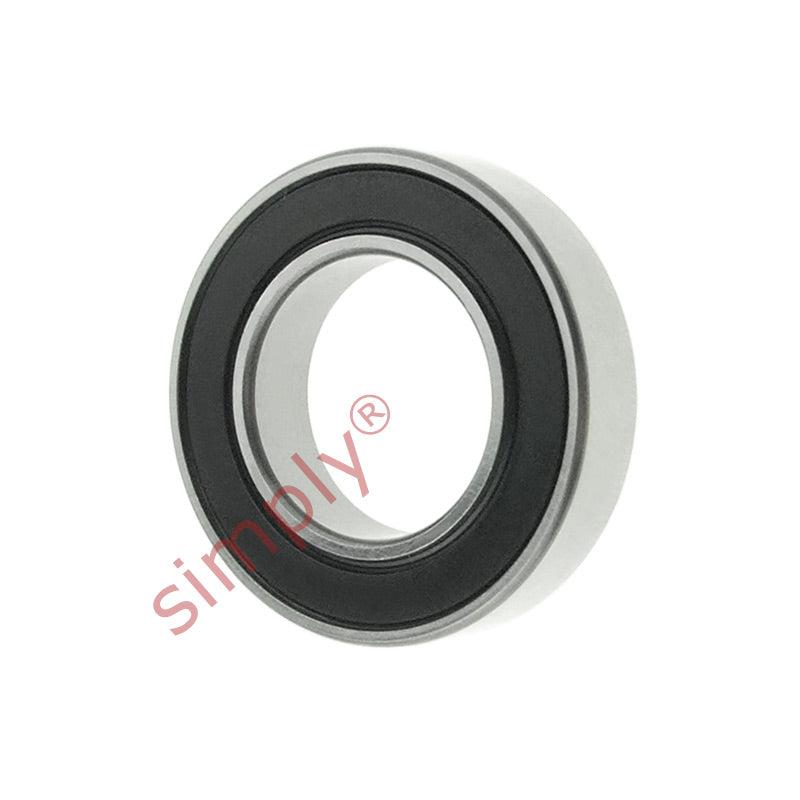

Major Branded 619032RSR Rubber Sealed Thin Deep Groove Ball Bearing 17x30x7mm
- Regular price
- €17.43 ex VAT
- Sale price
- €17,43
- Regular price
-
Quantity Price Breaks
Major Branded 619032RSR Rubber Sealed Thin Deep Groove Ball Bearing 17x30x7mm
- Regular price
- €17.43 ex VAT
- Sale price
- €17,43
- Regular price
-
Description
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing
Seals can be easily removed for applications that only require 1 seal.
Benefits: Prevents moisture and dirt getting into the bearing, lubricated for life
Note: If your bearing has the code 6903/61903 on the races and/or seals but has an 18mm bore, then you may need a [MR183072RS]
Technical
| d | = | 17mm |
| D | = | 30mm |
| B | = | 7mm |
| Dynamic load C | = | 4.62 kN |
| Static load Co | = | 2.55 kN |
| Fatigue load limit Pu | = | 0.108 kN |
| Reference speed | = | 50000 rpm |
| Limiting speed | = | 14000 rpm |
| Mass | = | 0.018 kg |
| d2 | = | 19.4mm |
| D2 | = | 27.8mm |
| r1r2 min | = | 0.3mm |
| da min | = | 19 |
