SKU: 6200-2Z/C4-MB

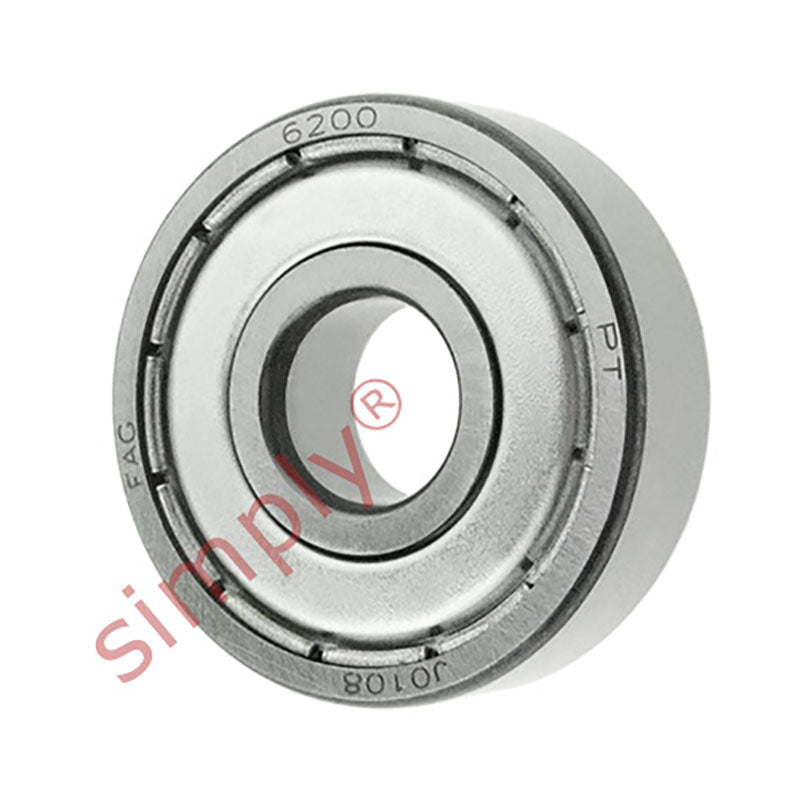

Major Branded 62002ZC4 Metal Shielded Deep Groove Ball Bearing 10x30x9mm
- Regular price
- €7.70 ex VAT
- Sale price
- €7,70
- Regular price
-
Quantity Price Breaks
Major Branded 62002ZC4 Metal Shielded Deep Groove Ball Bearing 10x30x9mm
- Regular price
- €7.70 ex VAT
- Sale price
- €7,70
- Regular price
-
Description
|
FAG Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Technical
| d | = | 10mm |
| D | = | 30mm |
| B | = | 9mm |
| Dynamic load C | = | 5.4 kN |
| Static load Co | = | 2.36 kN |
| Fatigue load limit Pu | = | 0.1 kN |
| Reference speed | = | 56000 rpm |
| Limiting speed | = | 28000 rpm |
| Mass | = | 0.032 kg |
| d2 | = | 15.2mm |
| D2 | = | 24.8mm |
| r1r2 min | = | 0.6mm |
| da min | = | 14.2 |
