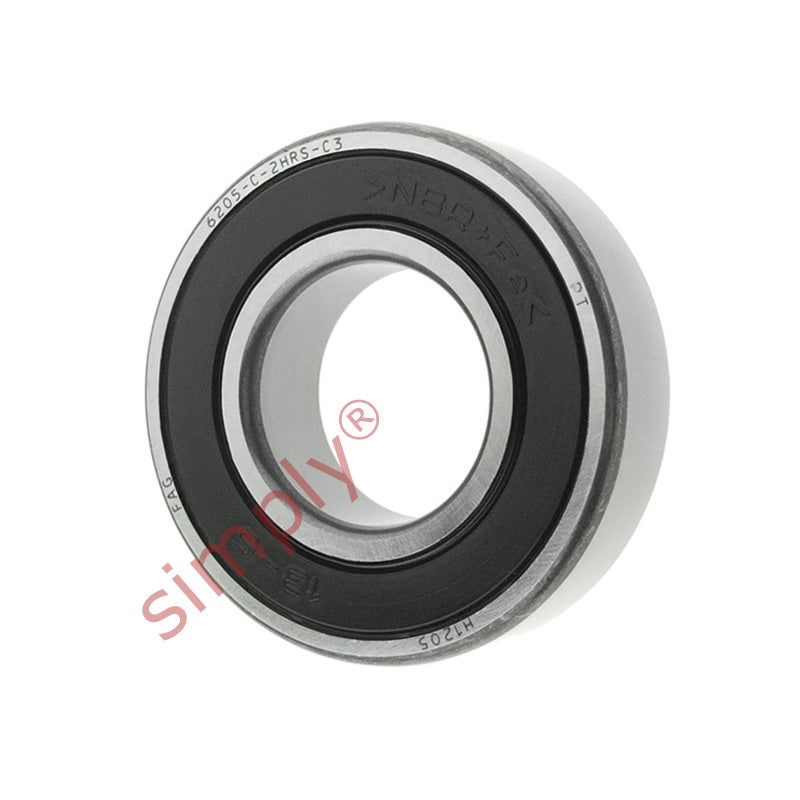

FAG 62052RSRC3 Rubber Sealed Deep Groove Ball Bearing 25x52x15mm
FAG
FAG 62052RSRC3 Rubber Sealed Deep Groove Ball Bearing 25x52x15mm
FAG

SKU: 6205-2RSR/C3-FAG

FAG 62052RSRC3 Rubber Sealed Deep Groove Ball Bearing 25x52x15mm

€10.63 ex VAT
€10,63
ex VAT
Equivalent to: 6205NSEC3 6205DUC3 6205RSC3 6205RSHC3 6205PC3 6205RSRC3 6205LUC3 62052NSEC3 6205DDUC3 62052RSC3 62052RS1C3 62052RSHC3 6205PPC3 6205LLU
In stock

Quantity Price Breaks

10+ €9.46
19+ €8.93
29+ €8.82
39+ €8.72
49+ €8.61
74+ €8.50
99+ €7.97
199+ €7.87
249+ €7.76
499+ €7.65
999+ €7.44
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
FAG 62052RSRC3 Rubber Sealed Deep Groove Ball Bearing 25x52x15mm
FAG
SKU: 6205-2RSR/C3-FAG

FAG 62052RSRC3 Rubber Sealed Deep Groove Ball Bearing 25x52x15mm

€10.63 ex VAT
€10,63
ex VAT

Description

FAG Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing
Seals can be easily removed for applications that only require 1 seal.
Benefits: Prevents moisture and dirt getting into the bearing, lubricated for life

Technical

d = 25mm
D = 52mm
B = 15mm
Dynamic load C = 14.8 kN
Static load Co = 7.8 kN
Fatigue load limit Pu = 0.335 kN
Reference speed = 28000 rpm
Limiting speed = 8500 rpm
Mass = 0.13 kg
d2 = 31.8mm
D2 = 46.3mm
r1r2 min = 1mm
da min = 30.6
