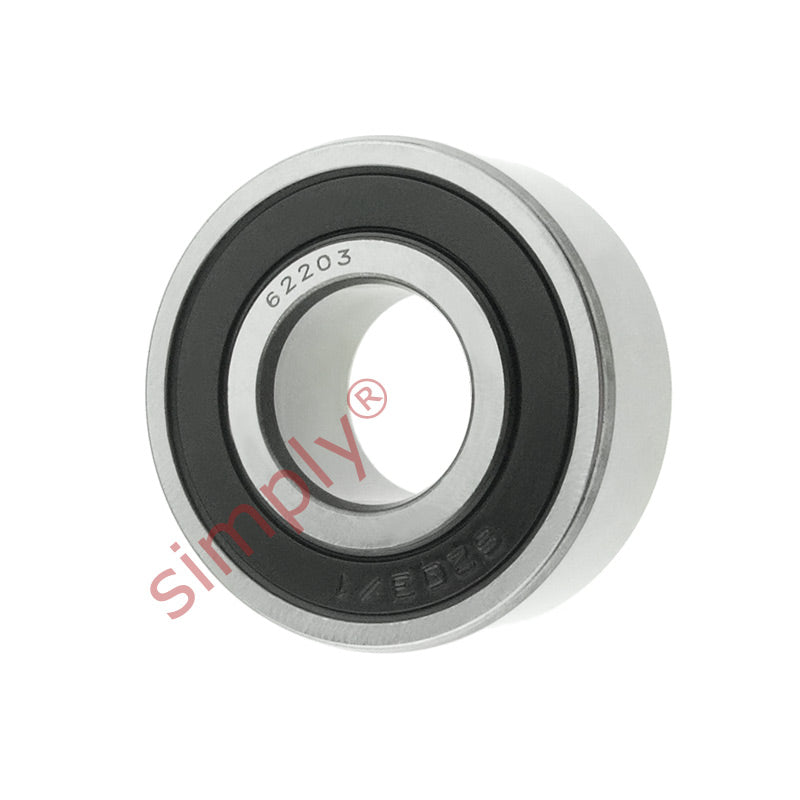

FAG 622032RSR Rubber Sealed Deep Groove Ball Bearing 17x40x16mm
FAG
FAG 622032RSR Rubber Sealed Deep Groove Ball Bearing 17x40x16mm
FAG

SKU: 62203-2RSR-FAG

FAG 622032RSR Rubber Sealed Deep Groove Ball Bearing 17x40x16mm

€17.93 ex VAT
€17,93
ex VAT
Equivalent to: 62203NSE 62203DU 62203RS 62203RSH 62203P 62203RSR 62203LU 622032NSE 62203DDU 622032RS 622032RS1 622032RSH 62203PP 62203LLU
In stock

Quantity Price Breaks

10+ €15.96
19+ €15.06
29+ €14.88
39+ €14.70
49+ €14.52
74+ €14.34
99+ €13.45
199+ €13.27
249+ €13.09
499+ €12.91
999+ €12.55
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
FAG 622032RSR Rubber Sealed Deep Groove Ball Bearing 17x40x16mm
FAG
SKU: 62203-2RSR-FAG

FAG 622032RSR Rubber Sealed Deep Groove Ball Bearing 17x40x16mm

€17.93 ex VAT
€17,93
ex VAT

Description

Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing
Seals can be easily removed for applications that only require 1 seal.
Benefits: Prevents moisture and dirt getting into the bearing, lubricated for life

Technical

d = 17mm
D = 40mm
B = 16mm
Dynamic load C = 9.56 kN
Static load Co = 4.75 kN
Fatigue load limit Pu = 0.2 kN
Reference speed = 38000 rpm
Limiting speed = 12000 rpm
Mass = 0.083 kg
d1 = 24.5mm
D2 = 35mm
r1r2 min = 0.6mm
da min = 21.2
