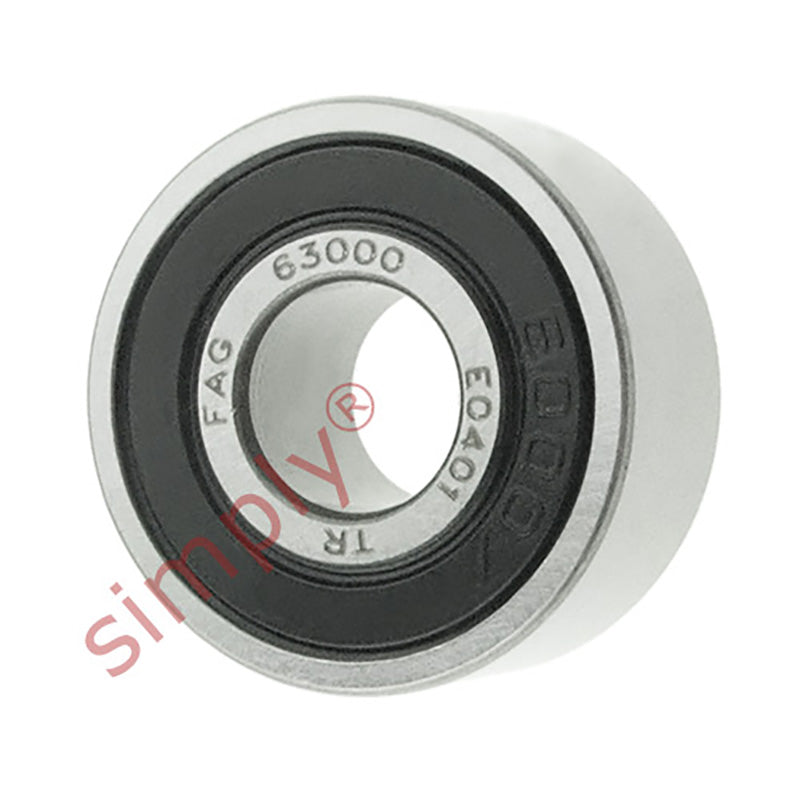

FAG 630002RSR Rubber Sealed Deep Groove Ball Bearing 10x26x12mm
FAG
FAG 630002RSR Rubber Sealed Deep Groove Ball Bearing 10x26x12mm
FAG

SKU: 63000-2RSR-FAG

FAG 630002RSR Rubber Sealed Deep Groove Ball Bearing 10x26x12mm

€14.14 ex VAT
€14,14
ex VAT
Equivalent to: 63000NSE 63000DU 63000RS 63000RSH 63000P 63000RSR 63000LU 630002NSE 63000DDU 630002RS 630002RS1 630002RSH 63000PP 63000LLU
In stock

Quantity Price Breaks

10+ €12.58
19+ €11.88
29+ €11.74
39+ €11.59
49+ €11.45
74+ €11.31
99+ €10.61
199+ €10.46
249+ €10.32
499+ €10.18
999+ €9.90
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
FAG 630002RSR Rubber Sealed Deep Groove Ball Bearing 10x26x12mm
FAG
SKU: 63000-2RSR-FAG

FAG 630002RSR Rubber Sealed Deep Groove Ball Bearing 10x26x12mm

€14.14 ex VAT
€14,14
ex VAT

Description

FAG Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing
Seals can be easily removed for applications that only require 1 seal.
Benefits: Prevents moisture and dirt getting into the bearing, lubricated for life

Technical

d = 10mm
D = 26mm
B = 12mm
Dynamic load C = 4.62 kN
Static load Co = 1.96 kN
Fatigue load limit Pu = 0.083 kN
Reference speed = 67000 rpm
Limiting speed = 19000 rpm
Mass = 0.025 kg
d1 = 16.7mm
D2 = 24.8mm
r1r2 min = 0.6mm
da min = 14.2
