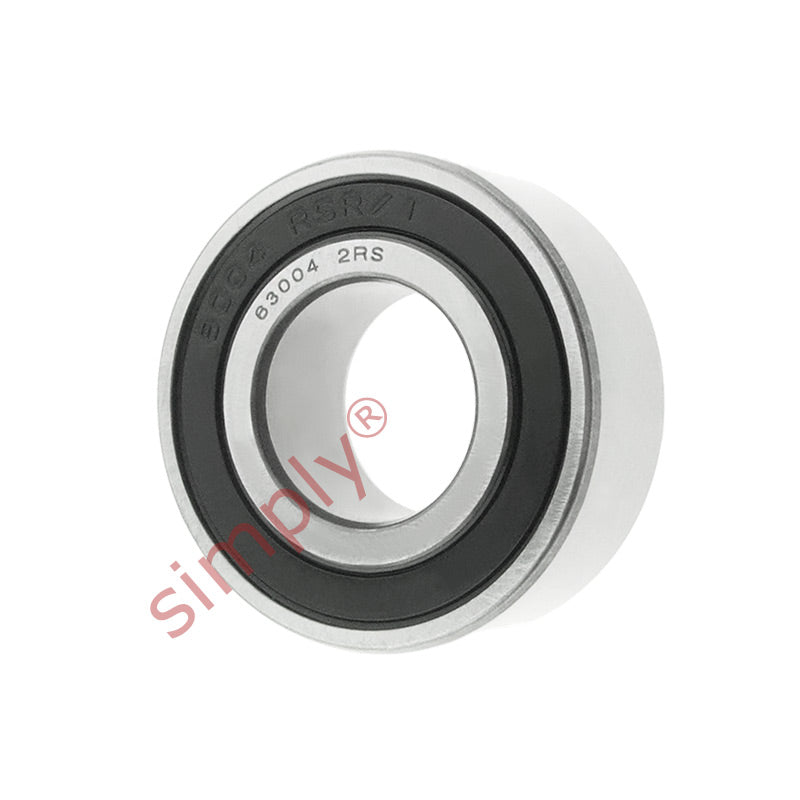

FAG 630042RSR Rubber Sealed Deep Groove Ball Bearing 20x42x16mm
FAG
FAG 630042RSR Rubber Sealed Deep Groove Ball Bearing 20x42x16mm
FAG

SKU: 63004-2RSR-FAG

FAG 630042RSR Rubber Sealed Deep Groove Ball Bearing 20x42x16mm

€28.11 ex VAT
€28,11
ex VAT
Equivalent to: 63004NSE 63004DU 63004RS 63004RSH 63004P 63004RSR 63004LU 630042NSE 63004DDU 630042RS 630042RS1 630042RSH 63004PP 63004LLU
In stock

Quantity Price Breaks

10+ €25.02
19+ €23.61
29+ €23.33
39+ €23.05
49+ €22.77
74+ €22.49
99+ €21.08
199+ €20.80
249+ €20.52
499+ €20.24
999+ €19.68
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
FAG 630042RSR Rubber Sealed Deep Groove Ball Bearing 20x42x16mm
FAG
SKU: 63004-2RSR-FAG

FAG 630042RSR Rubber Sealed Deep Groove Ball Bearing 20x42x16mm

€28.11 ex VAT
€28,11
ex VAT

Description

Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing
Seals can be easily removed for applications that only require 1 seal.
Benefits: Prevents moisture and dirt getting into the bearing, lubricated for life

Technical

d = 20mm
D = 42mm
B = 16mm
Dynamic load C = 9.36 kN
Static load Co = 5 kN
Fatigue load limit Pu = 0.212 kN
Reference speed = 38000 rpm
Limiting speed = 11000 rpm
Mass = 0.086 kg
d1 = 27.2mm
D2 = 37.2mm
r1r2 min = 0.6mm
da min = 23.2
