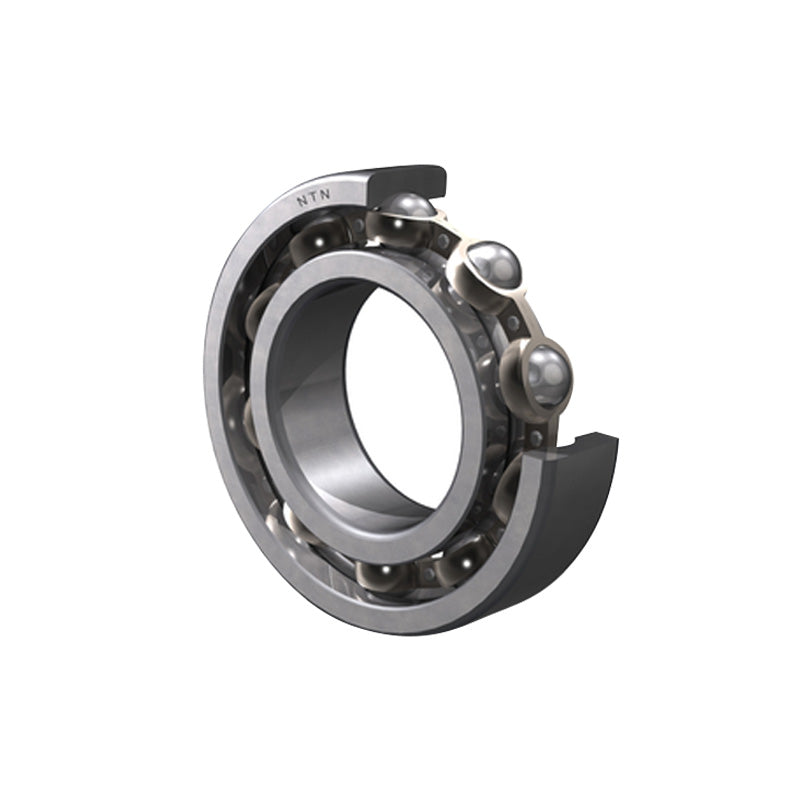

NTN 6305NC3 Open Type Deep Groove Ball Bearing with Snap Ring Groove 25x62x17mm
- Regular price
- €31.12 ex VAT
- Sale price
- €31,12
- Regular price
-
Not in stock
Quantity Price Breaks
3
€27.70
5
€26.14
10
€25.83
25
€25.52
49
€25.21
74
€24.90
99
€23.34
199
€23.03
249
€22.72
499
€22.41
999
€21.78
SKU:
6305NC3-NTN
NTN 6305NC3 Open Type Deep Groove Ball Bearing with Snap Ring Groove 25x62x17mm
- Regular price
- €31.12 ex VAT
- Sale price
- €31,12
- Regular price
-
Description
Open Deep Groove Ball Bearings with Snap Ring Groove: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. These bearings have a groove on the outside diameter to allow the use of a snap ring. (Not Supplied).
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution
Technical
| --- | = | Bearing dimensions |
| d | = | 25mm |
| D | = | 62mm |
| B | = | 17mm |
| r< | = | sub> |
| s< | = | /sub> |
| min | = | 1.1mm |
| rNS Min. | = | 0.5mm |
| --- | = | Loads angles and speeds |
| C< | = | sub> |
| r< | = | /sub> |
| = | 23.5 kN | |
| C< | = | sub> |
| or< | = | /sub> |
| = | 10.9 kN | |
| C< | = | sub> |
| u< | = | /sub> |
| = | 0.855 kN | |
| f< | = | sub> |
| 0< | = | /sub> |
| = | 12.6 kN | |
| Grease | = | 12000 rpm |
| Oil | = | 14000 rpm |
| --- | = | Snap Ring Dimensions |
| D< | = | sub> |
| 1< | = | /sub> |
| Max. | = | 59.61mm |
| a Max. | = | 3.28mm |
| b Min. | = | 1.9mm |
| r< | = | sub> |
| o< | = | /sub> |
| Max. | = | 0.6mm |
| --- | = | Fitting Dimensions |
| d< | = | sub> |
| a< | = | /sub> |
| Min. | = | 31.5mm |
| d< | = | sub> |
| a< | = | /sub> |
| Max. | = | 35mm |
| D< | = | sub> |
| a< | = | /sub> |
| Max. | = | 55.5mm |
| D< | = | sub> |
| X< | = | /sub> |
| (approx) | = | 68.5mm |
| C< | = | sub> |
| Y< | = | /sub> |
| Max. | = | 4.6mm |
| C< | = | sub> |
| Z< | = | /sub> |
| Min. | = | 1.7mm |
| r< | = | sub> |
| as< | = | /sub> |
| Max. | = | 1mm |
| r< | = | sub> |
| Nas< | = | /sub> |
| Max. | = | 0.5mm |
| Weight | = | 0.232 kg |
