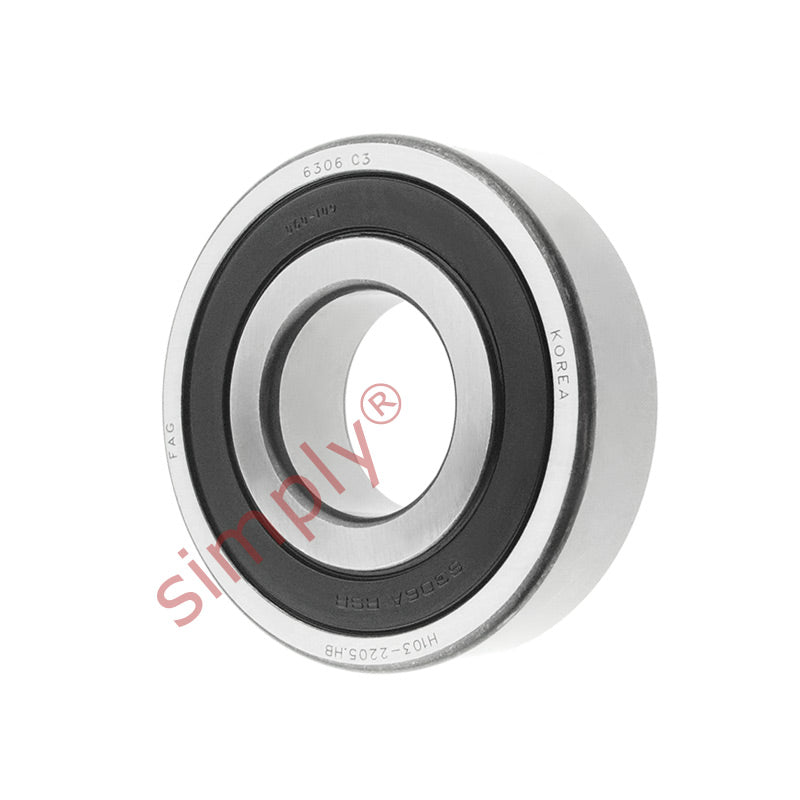

FAG 63062RSRC3 Rubber Sealed Deep Groove Ball Bearing 30x72x19mm
FAG
FAG 63062RSRC3 Rubber Sealed Deep Groove Ball Bearing 30x72x19mm
FAG

SKU: 6306-2RS1/C3-FAG

FAG 63062RSRC3 Rubber Sealed Deep Groove Ball Bearing 30x72x19mm

€19.96 ex VAT
€19,96
ex VAT
Equivalent to: 6306NSEC3 6306DUC3 6306RSC3 6306RSHC3 6306PC3 6306RSRC3 6306LUC3 63062NSEC3 6306DDUC3 63062RSC3 63062RS1C3 63062RSHC3 6306PPC3 6306LLU
In stock

Quantity Price Breaks

10+ €17.76
19+ €16.77
29+ €16.57
39+ €16.37
49+ €16.17
74+ €15.97
99+ €14.97
199+ €14.77
249+ €14.57
499+ €14.37
999+ €13.97
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
FAG 63062RSRC3 Rubber Sealed Deep Groove Ball Bearing 30x72x19mm
FAG
SKU: 6306-2RS1/C3-FAG

FAG 63062RSRC3 Rubber Sealed Deep Groove Ball Bearing 30x72x19mm

€19.96 ex VAT
€19,96
ex VAT

Description

FAG Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing
Seals can be easily removed for applications that only require 1 seal.
Benefits: Prevents moisture and dirt getting into the bearing, lubricated for life

Technical

d = 30mm
D = 72mm
B = 19mm
Dynamic load C = 32.5 kN
Static load Co = 17.3 kN
Fatigue load limit Pu = 0.74 kN
Reference speed = 22000 rpm
Limiting speed = 14000 rpm
Mass = 0.33 kg
d1 = 42.5mm
d2 = 59.7mm
D2 = -mm
r1r2 min = 1.1mm
da min = 37
