SKU: 6307-2Z-HT-330

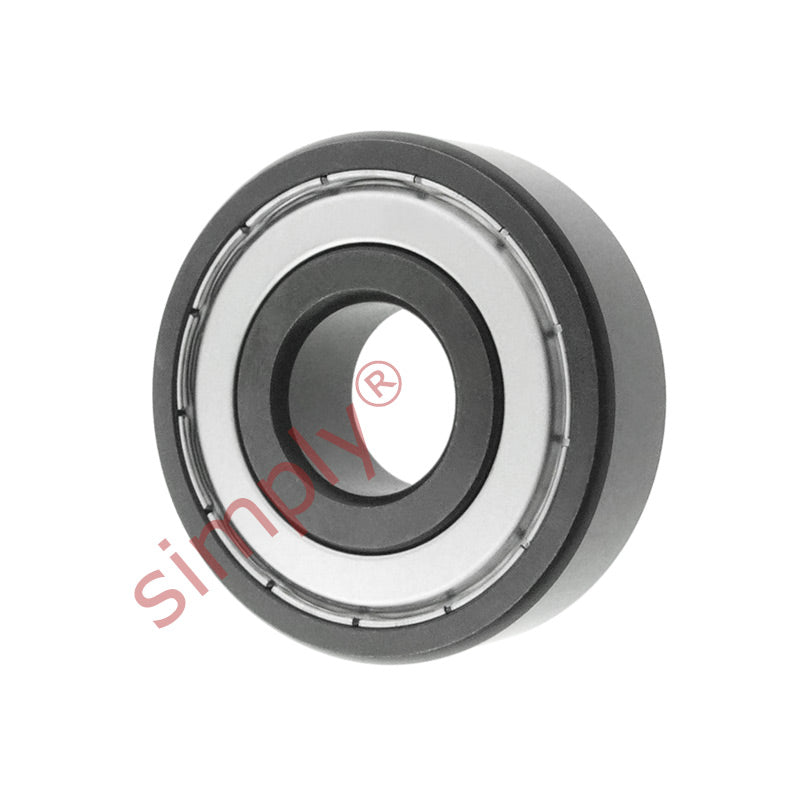

6307ZZHT330 High Temp 330C Shielded Deep Groove Ball Bearing 35x80x21mm Max 90rpm
- Regular price
- €22.73 ex VAT
- Sale price
- €22,73
- Regular price
-
ex VAT
Not in stock
Quantity Price Breaks
3
€20.23
5
€19.09
10
€18.87
15
€18.64
20
€18.41
30
€18.18
40
€17.05
50
€16.82
60
€16.59
75
€16.37
100
€15.91
Description
HT330 Series High Temperature Bearings: Manufactured with a steel cage to further enhance the bearings performance, supplied metal shielded are designed for high temperatures up to + 330 degrees Celsius and down to - 30 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for low speeds at temperature without maintenance. Internal clearance is C5+ and all have a BLACK PHOSPHATE COATING
Benefits: High temperature resilience, low maintenance
Technical
| Inside diameter d | = | 35mm |
| Outside diameter D | = | 80mm |
| Width W | = | 21mm |
| Static load max | = | 10.98 kN |
| Max operating temperature | = | 330 deg Celcius |
| Maximum speed | = | 90 rpm |
| Weight | = | 450 g |
