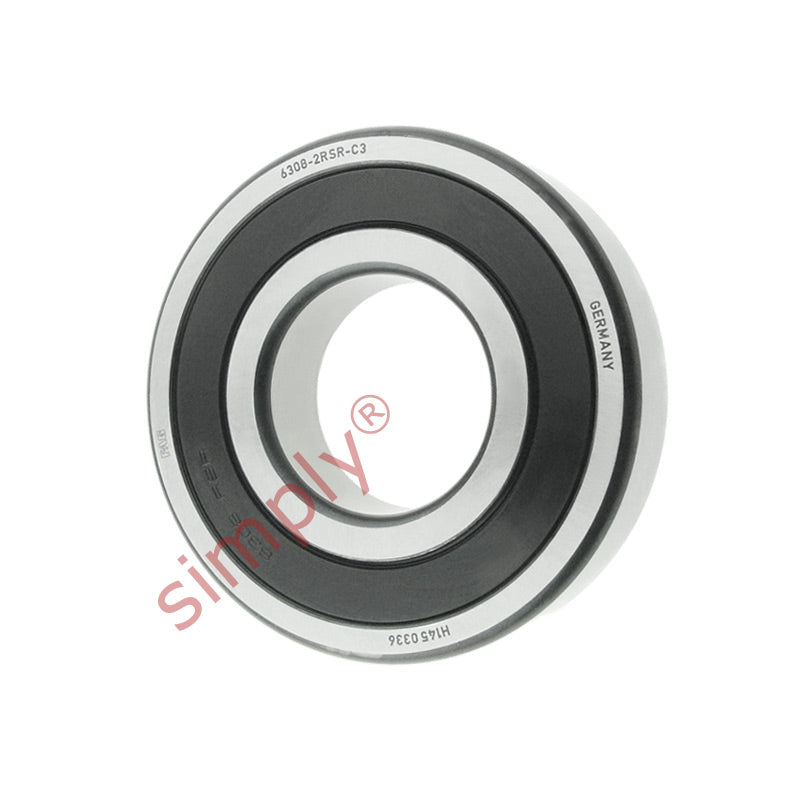

FAG 63082RSRC3 Rubber Sealed Deep Groove Ball Bearing 40x90x23mm
FAG
FAG 63082RSRC3 Rubber Sealed Deep Groove Ball Bearing 40x90x23mm
FAG

SKU: 6308-2RSR/C3-FAG

FAG 63082RSRC3 Rubber Sealed Deep Groove Ball Bearing 40x90x23mm

€34.92 ex VAT
€34,92
ex VAT
Equivalent to: 6308NSEC3 6308DUC3 6308RSC3 6308RSHC3 6308PC3 6308RSRC3 6308LUC3 63082NSEC3 6308DDUC3 63082RSC3 63082RS1C3 63082RSHC3 6308PPC3 6308LLU
In stock

Quantity Price Breaks

10+ €31.08
19+ €29.33
29+ €28.98
39+ €28.63
49+ €28.29
74+ €27.94
99+ €26.19
199+ €25.84
249+ €25.49
499+ €25.14
999+ €24.44
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
FAG 63082RSRC3 Rubber Sealed Deep Groove Ball Bearing 40x90x23mm
FAG
SKU: 6308-2RSR/C3-FAG

FAG 63082RSRC3 Rubber Sealed Deep Groove Ball Bearing 40x90x23mm

€34.92 ex VAT
€34,92
ex VAT

Description

FAG Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing
Seals can be easily removed for applications that only require 1 seal.
Benefits: Prevents moisture and dirt getting into the bearing, lubricated for life

Technical

d = 40mm
D = 90mm
B = 23mm
Dynamic load C = 42.3 kN
Static load Co = 24 kN
Fatigue load limit Pu = 1.02 kN
Reference speed = 17000 rpm
Limiting speed = 11000 rpm
Mass = 0.63 kg
d1 = 56.1mm
d2 = 73.8mm
D2 = 77.7mm
r1r2 min = 1.5mm
da min = 1.5
