SKU: 6308-2Z-FAG

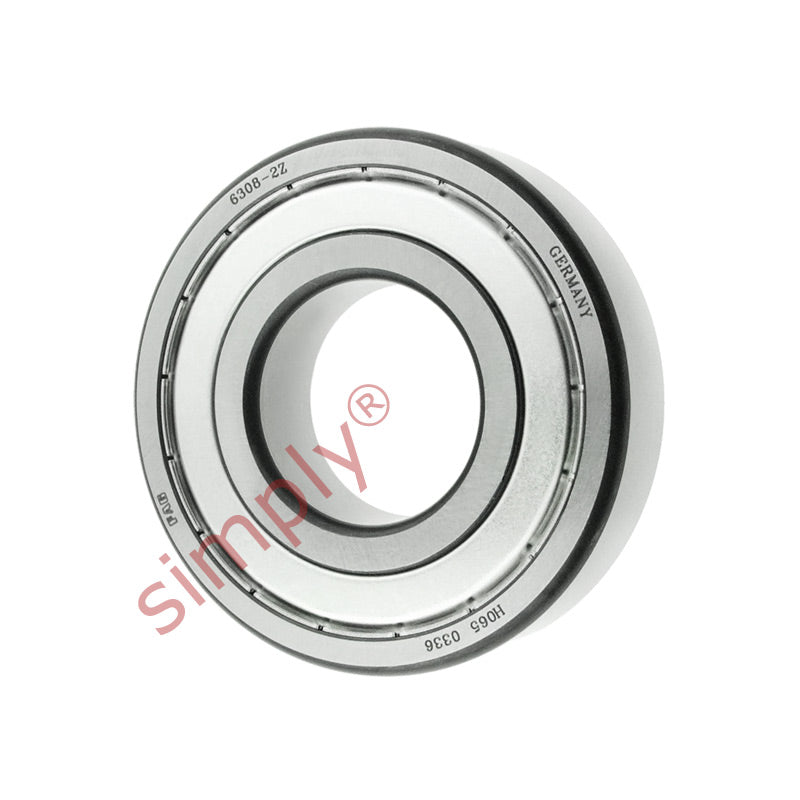

FAG 63082Z Metal Shielded Deep Groove Ball Bearing 40x90x23mm
- Regular price
- €32.70 ex VAT
- Sale price
- €32,70
- Regular price
-
In stock
Quantity Price Breaks
10+
€29.10
19+
€27.47
29+
€27.14
39+
€26.81
49+
€26.49
74+
€26.16
99+
€24.53
199+
€24.20
249+
€23.87
499+
€23.54
999+
€22.89
SKU:
6308-2Z-FAG
FAG 63082Z Metal Shielded Deep Groove Ball Bearing 40x90x23mm
- Regular price
- €32.70 ex VAT
- Sale price
- €32,70
- Regular price
-
Description
|
FAG Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Technical
| d | = | 40mm |
| D | = | 90mm |
| B | = | 23mm |
| Dynamic load C | = | 42.3 kN |
| Static load Co | = | 24 kN |
| Fatigue load limit Pu | = | 1.02 kN |
| Reference speed | = | 17000 rpm |
| Limiting speed | = | 8500 rpm |
| Mass | = | 0.63 kg |
| d1 | = | 56.1mm |
| D2 | = | 77.7mm |
| r1r2 min | = | 1.5mm |
| da min | = | 49 |
