SKU: 6314-2RSR-MB

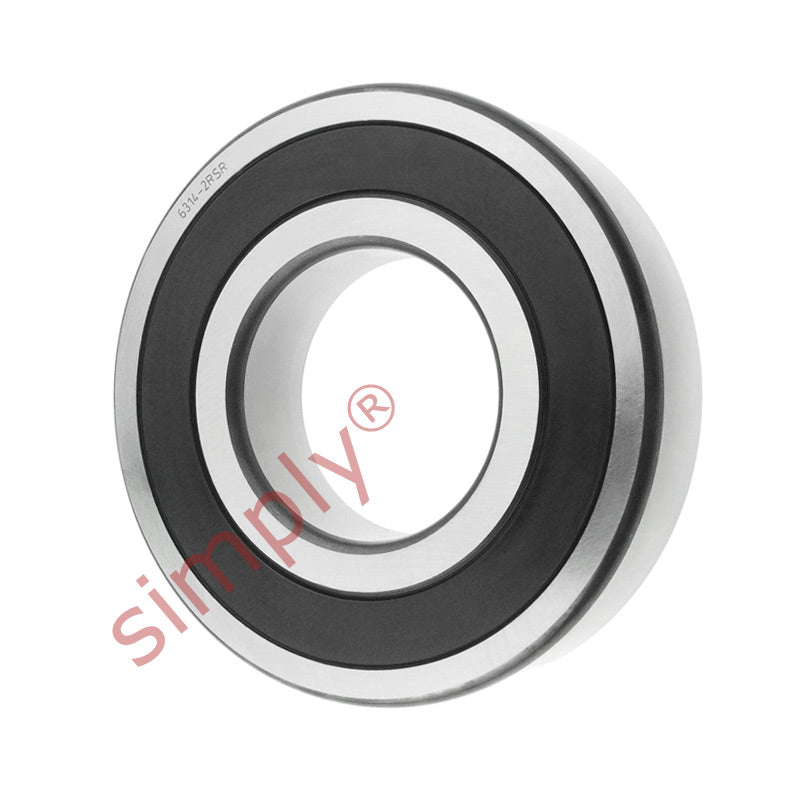

Major Branded 63142RSR Rubber Sealed Deep Groove Ball Bearing 70x150x35mm
- Regular price
- €102.78 ex VAT
- Sale price
- €102,78
- Regular price
-
In stock
Quantity Price Breaks
10+
€91.47
19+
€86.34
29+
€85.31
39+
€84.28
49+
€83.25
74+
€82.22
99+
€77.09
199+
€76.06
249+
€75.03
499+
€74.00
999+
€71.95
SKU:
6314-2RSR-MB
Major Branded 63142RSR Rubber Sealed Deep Groove Ball Bearing 70x150x35mm
- Regular price
- €102.78 ex VAT
- Sale price
- €102,78
- Regular price
-
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
Technical
| d | = | 70mm |
| D | = | 150mm |
| B | = | 35mm |
| Dynamic load C | = | 111 kN |
| Static load Co | = | 68 kN |
| Fatigue load limit Pu | = | 2.75 kN |
| Reference speed | = | 9500 rpm |
| Limiting speed | = | 3000 rpm |
| Mass | = | 2.5 kg |
| d1 | = | 95mm |
| d2 | = | 130mm |
| D2 | = | -mm |
| r1r2 min | = | 2.1mm |
| da min | = | 82 |
