SKU: 6316-2RS1-SKF

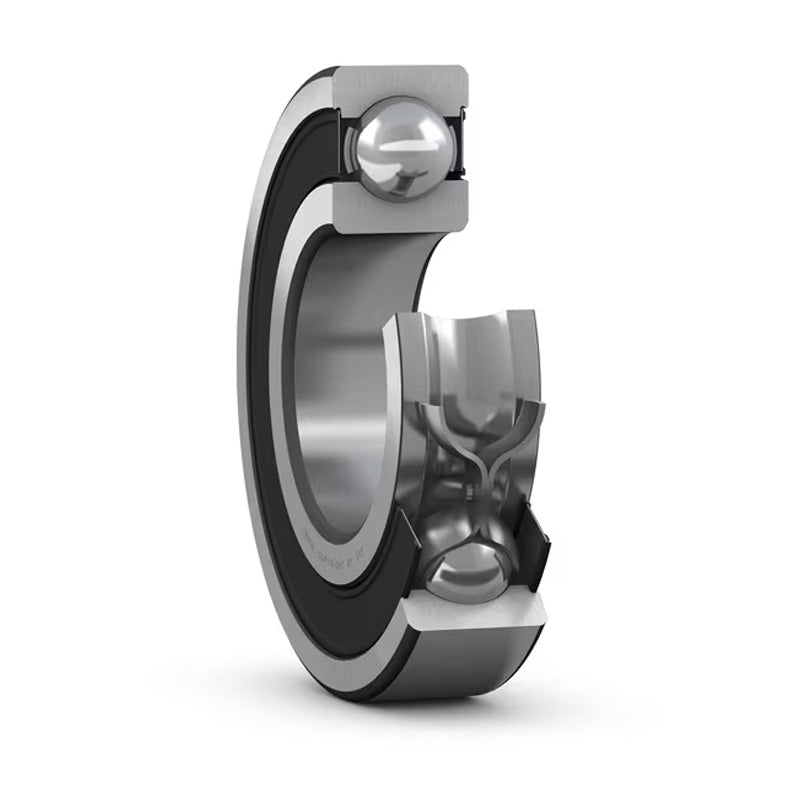

SKF 63162RS1 Rubber Sealed Deep Groove Ball Bearing 80x170x39mm
- Regular price
- €277.72 ex VAT
- Sale price
- €277,72
- Regular price
-
In stock
Quantity Price Breaks
10+
€247.17
19+
€233.28
29+
€230.51
39+
€227.73
49+
€224.95
74+
€222.18
99+
€208.29
199+
€205.51
249+
€202.74
499+
€199.96
999+
€194.40
SKU:
6316-2RS1-SKF
SKF 63162RS1 Rubber Sealed Deep Groove Ball Bearing 80x170x39mm
- Regular price
- €277.72 ex VAT
- Sale price
- €277,72
- Regular price
-
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
Technical
| d | = | 80mm |
| D | = | 170mm |
| B | = | 39mm |
| Dynamic load C | = | 130 kN |
| Static load Co | = | 86.5 kN |
| Fatigue load limit Pu | = | 3.25 kN |
| Reference speed | = | 8500 rpm |
| Limiting speed | = | 2600 rpm |
| Weight | = | 3.6 kg |
| d1 | = | 108mm |
| d2 | = | 147mm |
| r1r2 min | = | 2.1mm |
| da min | = | 92mm |
| Da max | = | 158mm |
| ra max | = | 2mm |
| Calculation factor kr | = | 0.03 |
| Calculation factor f0 | = | 13 |
