SKU: 7.5SS316-JUB

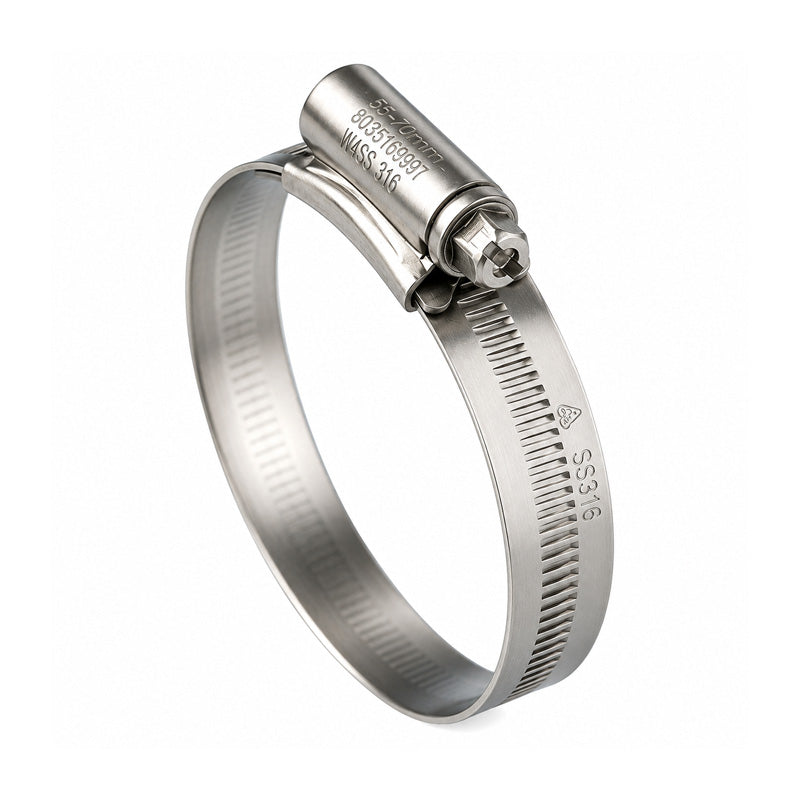

7.5SS316 316 Stainless Steel HNSS Original Jubilee Clip Adjustment Range 158mm - 190mm Band Width 13mm
- Regular price
- €11.71 ex VAT
- Sale price
- €11,71
- Regular price
-
In stock
Quantity Price Breaks
3
€10.42
5
€9.84
9
€9.72
19
€9.60
49
€9.49
74
€9.37
99
€8.78
199
€8.67
249
€8.55
499
€8.43
999
€8.20
SKU:
7.5SS316-JUB
7.5SS316 316 Stainless Steel HNSS Original Jubilee Clip Adjustment Range 158mm - 190mm Band Width 13mm
- Regular price
- €11.71 ex VAT
- Sale price
- €11,71
- Regular price
-
Description
316 Stainless Steel HNSS Worm Drive Jubilee Clips: The original Jubilee® Clips. Suitable for most day to day needs in the automotive, agricultural, irrigation and farm machinery.
Benefits: Rolled edges provide protection to softer hoses.
Technical
| BS No. | = | 190 |
| Adjustment Range | = | 158mm - 190mm |
| Adjustment Range | = | 6-1/4 - 7-1/2 inch |
| Band Width (+/- 0.1) | = | 13mm |
| Band Thickness (+/- 0.1) | = | 0.914mm |
| Recommended Torque | = | 5.9Nm |
| Maximum Torque | = | 7.9Nm |
| Maximum Pressure | = | 18 Psi |
