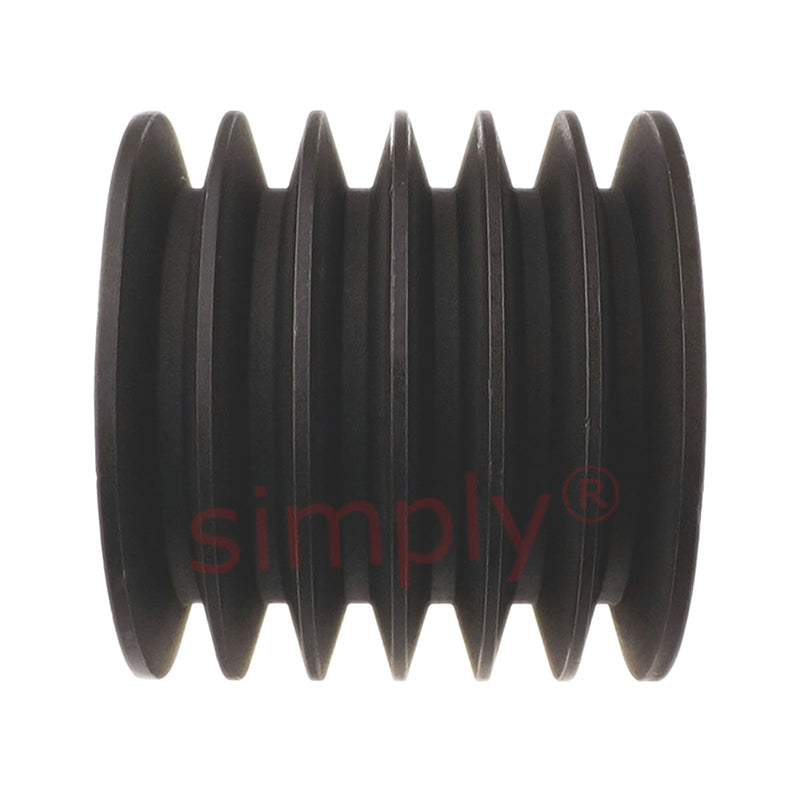

710X6SPC 710mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)

SKU: 710SPC6-MB

710X6SPC 710mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)

€699.40 ex VAT
€699,40
ex VAT
In stock

Quantity Price Breaks

10+ €622.47
19+ €587.50
29+ €580.50
39+ €573.51
49+ €566.51
74+ €559.52
99+ €524.55
199+ €517.56
249+ €510.56
499+ €503.57
999+ €489.58
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
710X6SPC 710mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)
SKU: 710SPC6-MB

710X6SPC 710mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)

€699.40 ex VAT
€699,40
ex VAT

Description

SPC Section V Belt Pulleys: Manufactured from fine grain gray cast iron grade GG25 and are phosphated. Groove dimensions conform to ISO 4183 for both eccentricity of outside diameter to bore and groove side wobble tolerance. They are suitable for use with all wedge belts according to ISO 4184 and all classical V-belts according to ISO 4184.
Speeds: Circumferential speeds of up to 40 m/s are permissible. All our pulleys are balanced to grade Q6.3 or better.
Pulleys with a weight of 100kg and above are dynamically balanced (two planes).
All pulleys with a weight less than 100kg are statically machine balanced (one plane).
Suitability: Suitable for use with C section and SPC section V-Belts
Benefits: Cost effective replacement
