SKU: 715-505855

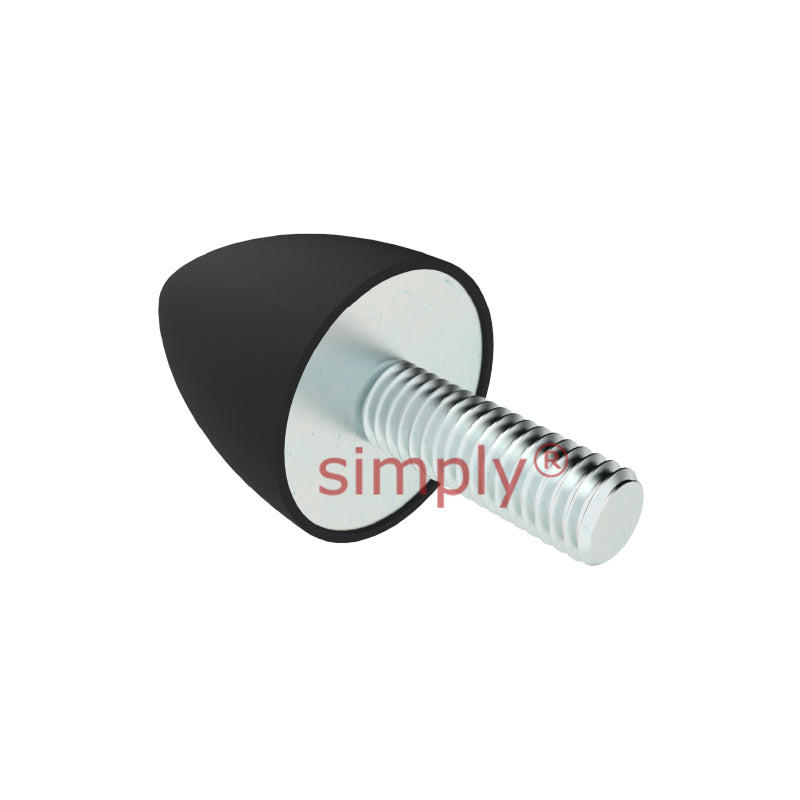

High-Performance Male Rubber Cone Bump Stop 50x58mm M10 Thread
- Regular price
- €9.02 ex VAT
- Sale price
- €9,02
- Regular price
-
Quantity Price Breaks
High-Performance Male Rubber Cone Bump Stop 50x58mm M10 Thread
- Regular price
- €9.02 ex VAT
- Sale price
- €9,02
- Regular price
-
Description
Male Conical Buffer: These male anti-vibration conical buffers (also known as Parabolic Buffers) represent an ideal low-cost solution to your vibration dampening requirements. The innovative design of these mountings provides a progressive stiffness so that under extreme levels of deformation, the energy of the shock is absorbed gradually and the equipment is protected. Constructed of Bright Zinc plated corrosion resistant steel sandwiched between natural shock-absorbing rubber.
Rohs: Compliant as standard.
Benefits: Excellent anti-vibration and dampening properties, low cost, a wide range of sizes available, other materials on request.
Technical
| L | = | 58mm |
| D | = | 50mm |
| D1 | = | M10 |
| L1 | = | 28mm |
| Max Compressive Load | = | 178kg |
| Deflection at Max Compressive Load | = | 25mm |
| Temperature Range | = | -30 deg C to +80 deg C |
| Hardness | = | 55 Shore A Hardness |
| Weight | = | 0.13 kg |
| Nuts | = | < |
| a href=" | = | advanced_search_result.php?sort=2a& |
| search_in_description=1& | = | keywords=M10+steel+nut" |
| > | = | M10 Click Here< |
| /a> | = | |
| Set Screws | = | < |
| a href=" | = | advanced_search_result.php?sort=2a& |
| search_in_description=1& | = | keywords=M10+set+screw" |
| > | = | M10 Click Here< |
| /a> | = |
