SKU: 7200BEP-SKF

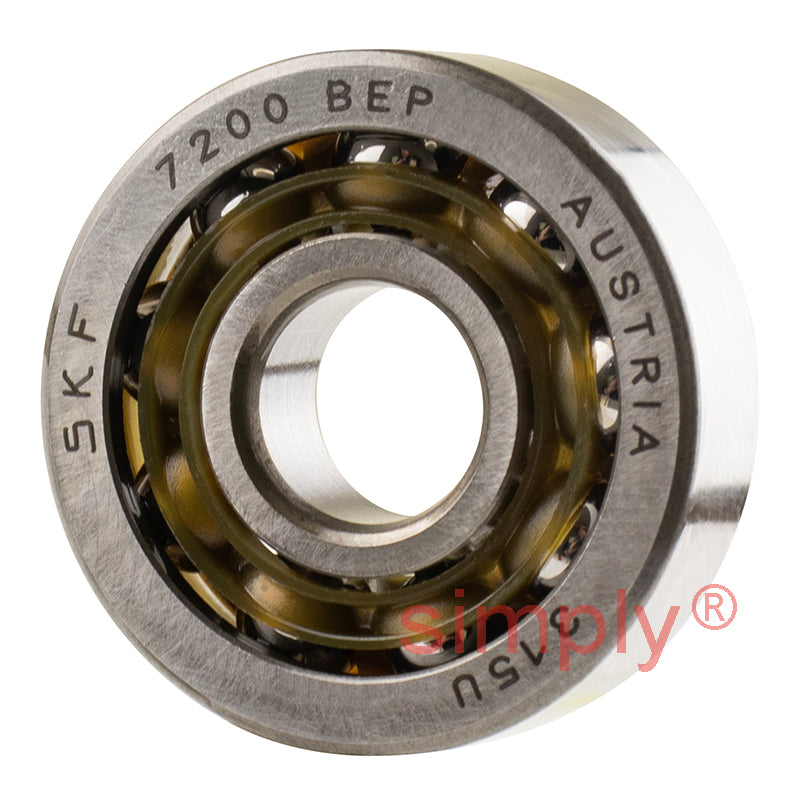

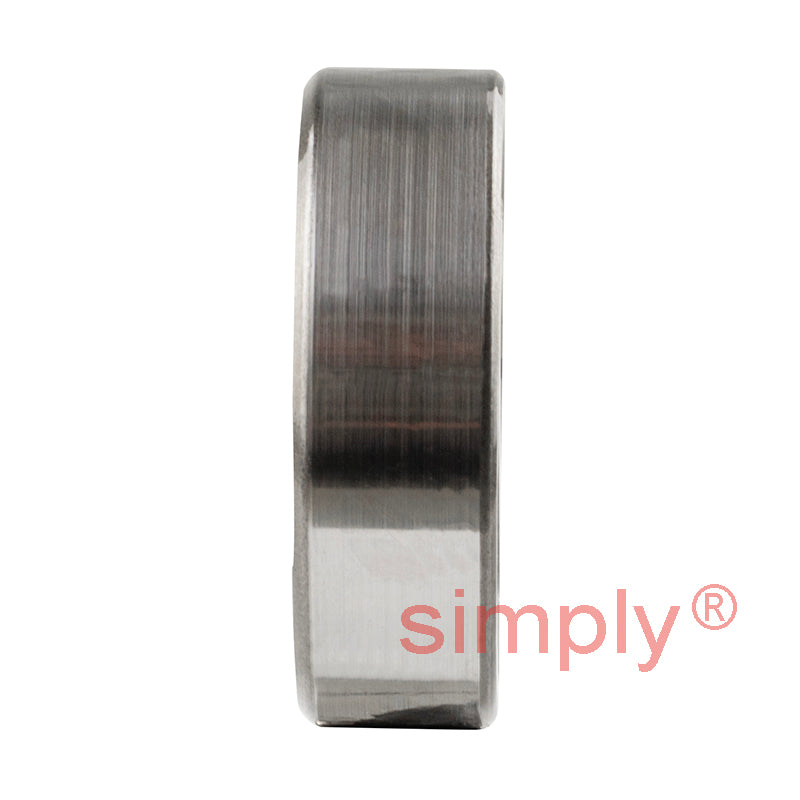

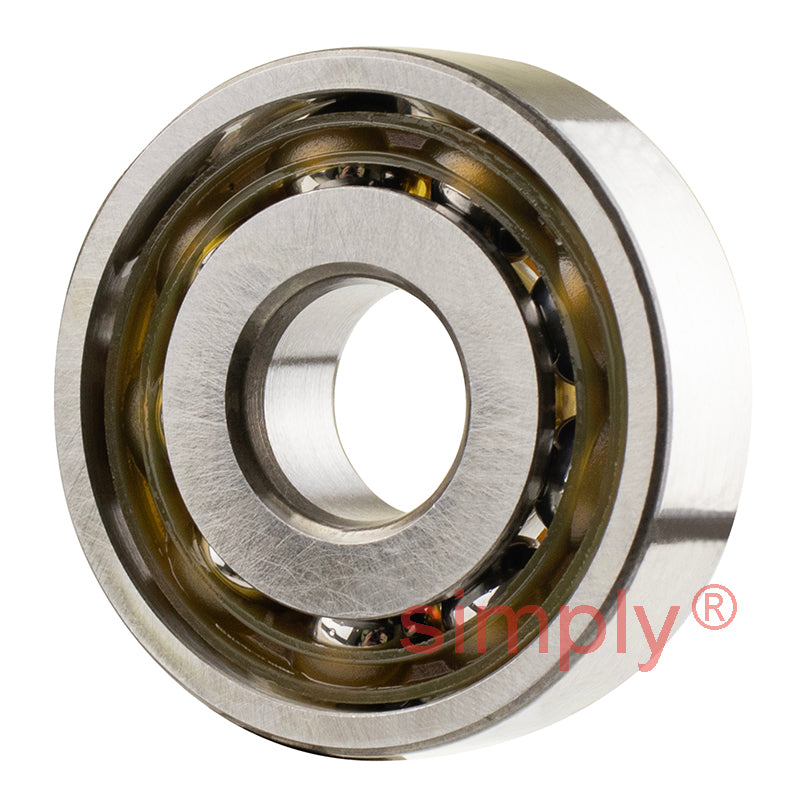

SKF 7200BEP Single Row Angular Contact Ball Bearing 10x30x9mm
- Regular price
- €22.65 ex VAT
- Sale price
- €22,65
- Regular price
-
In stock
Quantity Price Breaks
4
€20.16
8
€19.03
12
€18.80
16
€18.57
25
€18.35
50
€18.12
99
€16.99
199
€16.76
249
€16.53
499
€16.31
999
€15.86
SKU:
7200BEP-SKF
SKF 7200BEP Single Row Angular Contact Ball Bearing 10x30x9mm
- Regular price
- €22.65 ex VAT
- Sale price
- €22,65
- Regular price
-
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Technical
| d | = | 10mm |
| D | = | 30mm |
| B | = | 9mm |
| Dynamic load Cr | = | 7.02 kN |
| Static load Cor | = | 3.35 kN |
| Fatigue load limit Pu | = | 0.14 kN |
| Reference speed | = | 30000 rpm |
| Limit speed | = | 30000 rpm |
| Weight | = | 0.03 kg |
| d1 | = | 18.3mm |
| d2 | = | 14.6mm |
| D1 | = | 22.9mm |
| r1r2 min | = | 0.6mm |
| r3r4 min | = | 0.3mm |
| a | = | 13mm |
| da min | = | 14.2mm |
| Da max | = | 25.8mm |
| Db max | = | 27.6mm |
| ra max | = | 0.6mm |
| rb max | = | 0.3mm |
