SKU: 7203BECBP-SKF

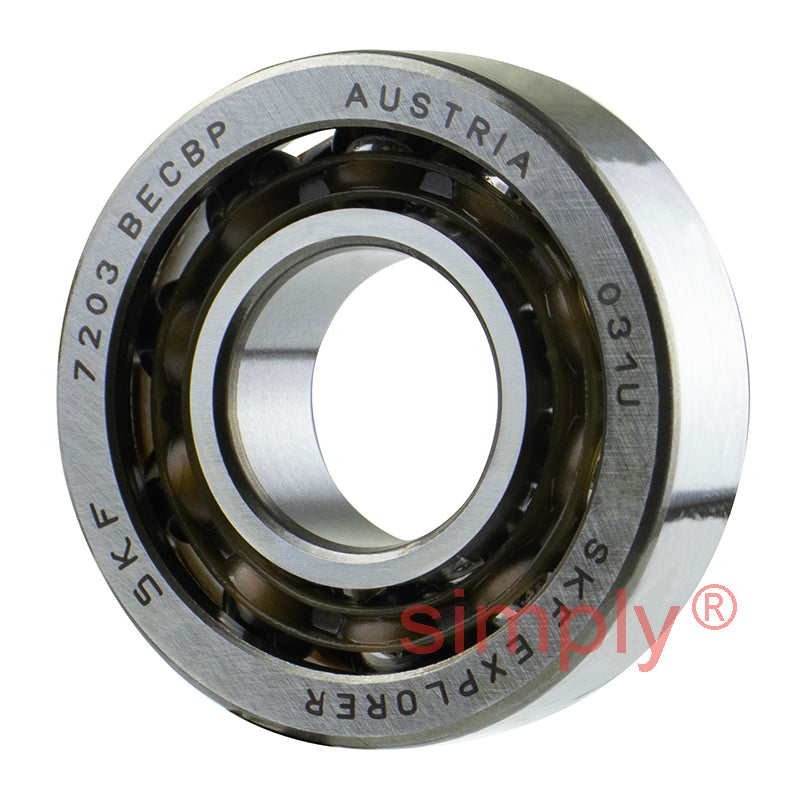

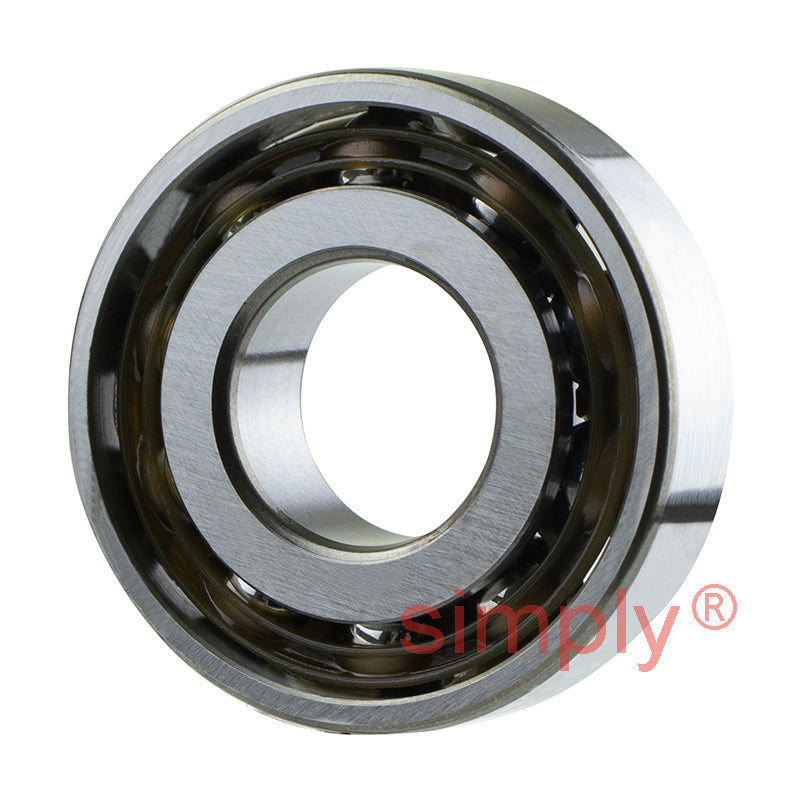

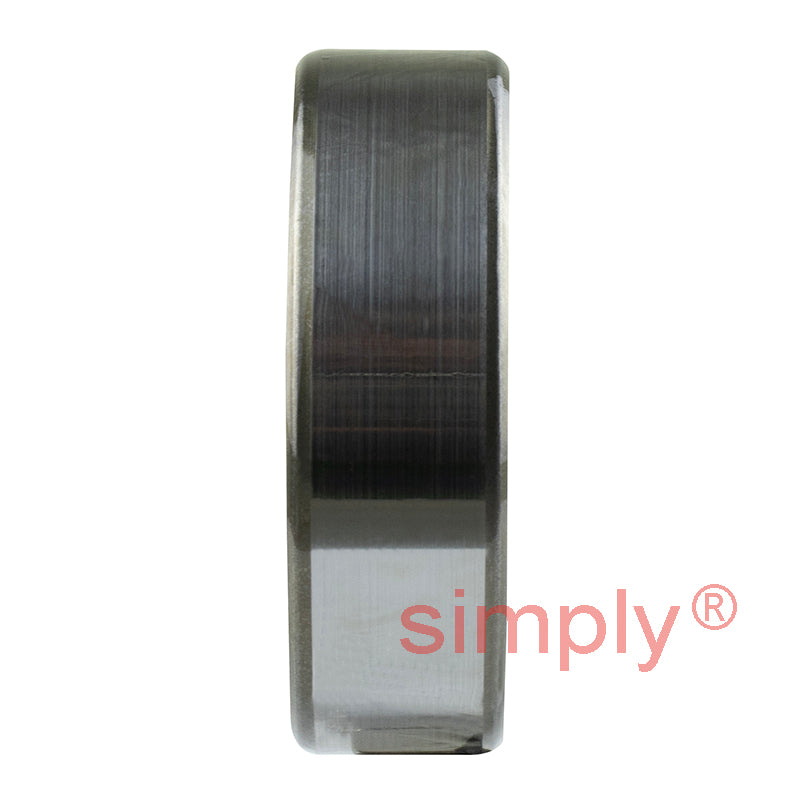

SKF 7203BECBP Single Row Angular Contact Ball Bearing 17x40x12mm
- Regular price
- €43.98 ex VAT
- Sale price
- €43,98
- Regular price
-
In stock
Quantity Price Breaks
4
€39.14
8
€36.94
12
€36.50
16
€36.06
25
€35.62
50
€35.18
99
€32.99
199
€32.55
249
€32.11
499
€31.67
999
€30.79
SKU:
7203BECBP-SKF
SKF 7203BECBP Single Row Angular Contact Ball Bearing 17x40x12mm
- Regular price
- €43.98 ex VAT
- Sale price
- €43,98
- Regular price
-
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Technical
| d | = | 17mm |
| D | = | 40mm |
| B | = | 12mm |
| Dynamic load Cr | = | 11 kN |
| Static load Cor | = | 5.85 kN |
| Fatigue load limit Pu | = | 0.25 kN |
| Reference speed | = | 22000 rpm |
| Limit speed | = | 22000 rpm |
| Weight | = | 0.064 kg |
| d1 | = | 26.3mm |
| d2 | = | 21.7mm |
| D1 | = | 31.2mm |
| r1r2 min | = | 0.6mm |
| r3r4 min | = | 0.6mm |
| a | = | 18mm |
| da min | = | 21.2mm |
| Da max | = | 35.8mm |
| Db max | = | 35.8mm |
| ra max | = | 0.6mm |
| rb max | = | 0.6mm |
