SKU: 7203BEP-SKF

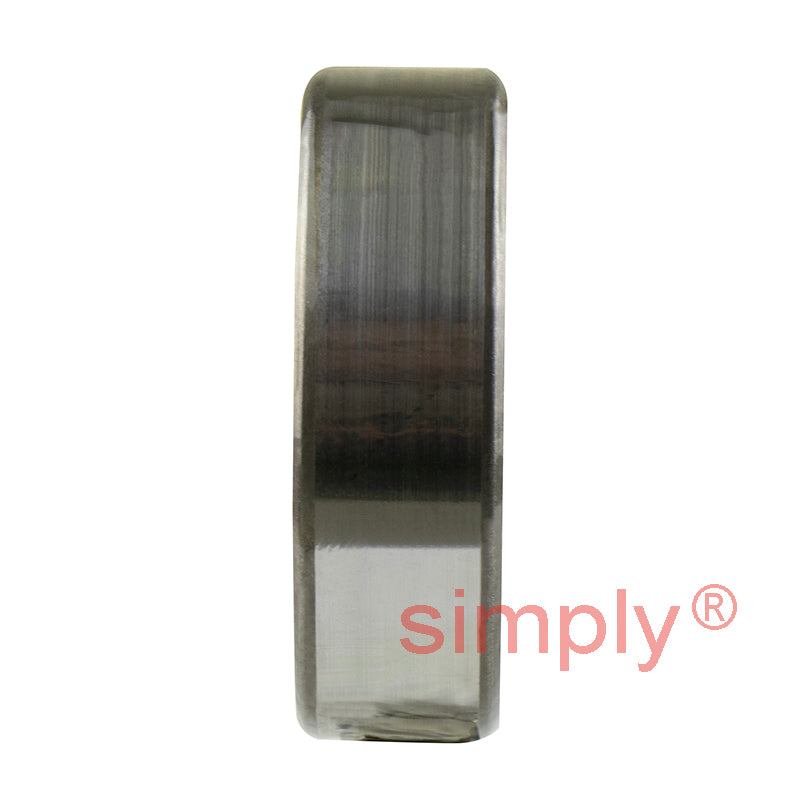

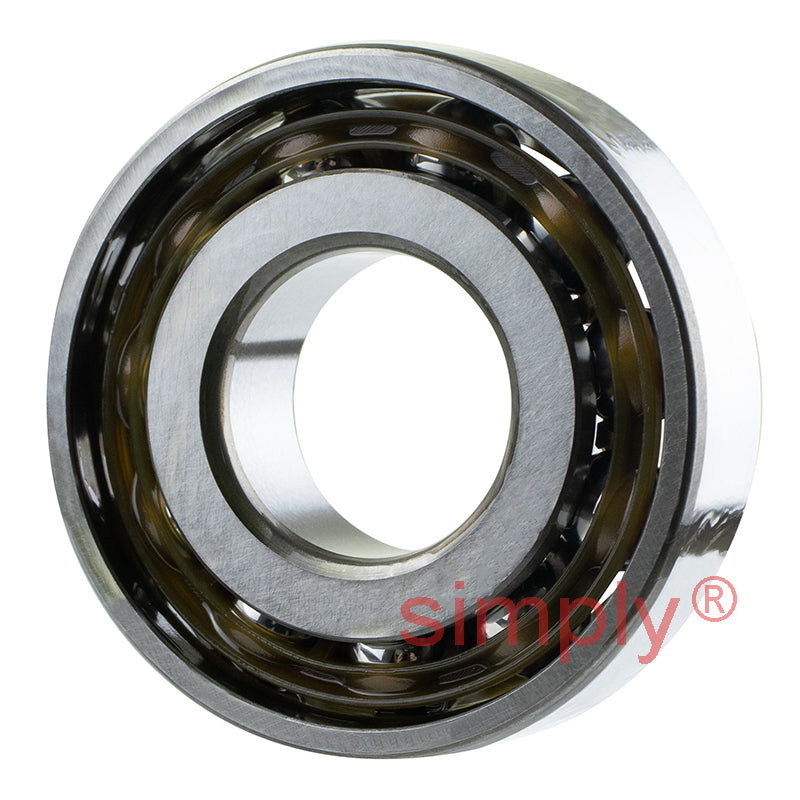

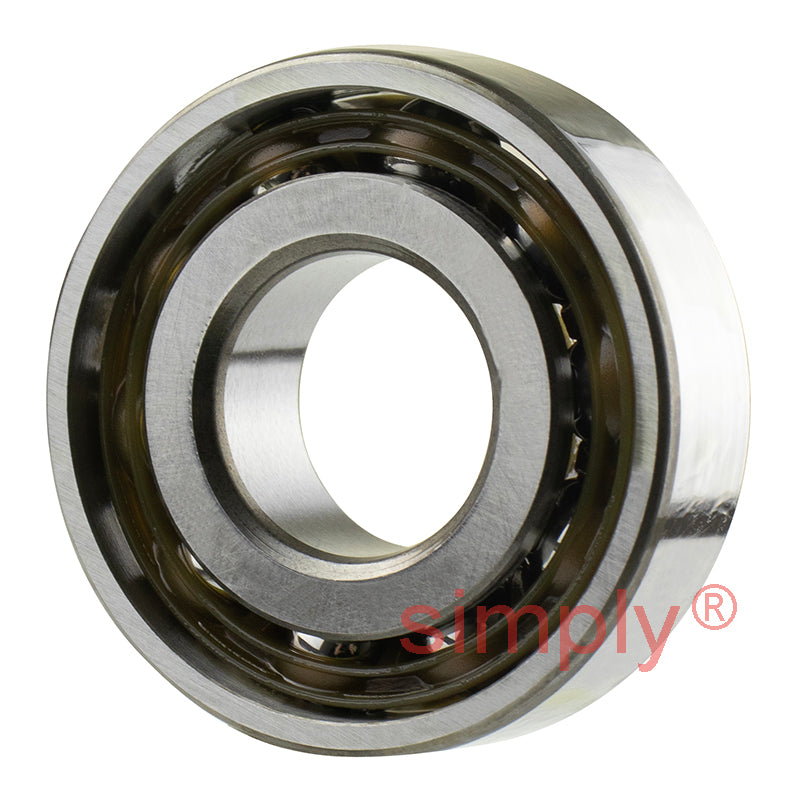

SKF 7203BEP Single Row Angular Contact Ball Bearing 17x40x12mm
- Regular price
- €23.06 ex VAT
- Sale price
- €23,06
- Regular price
-
In stock
Quantity Price Breaks
4
€20.52
8
€19.37
12
€19.14
16
€18.91
25
€18.68
50
€18.45
99
€17.30
199
€17.06
249
€16.83
499
€16.60
999
€16.14
SKU:
7203BEP-SKF
SKF 7203BEP Single Row Angular Contact Ball Bearing 17x40x12mm
- Regular price
- €23.06 ex VAT
- Sale price
- €23,06
- Regular price
-
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Technical
| d | = | 17mm |
| D | = | 40mm |
| B | = | 12mm |
| Dynamic load Cr | = | 10.4 kN |
| Static load Cor | = | 5.5 kN |
| Fatigue load limit Pu | = | 0.236 kN |
| Reference speed | = | 20000 rpm |
| Limit speed | = | 20000 rpm |
| Weight | = | 0.064 kg |
| d1 | = | 26.3mm |
| d2 | = | 21.7mm |
| D1 | = | 31.2mm |
| r1r2 min | = | 0.6mm |
| r3r4 min | = | 0.6mm |
| a | = | 18mm |
| da min | = | 21.2mm |
| Da max | = | 35.8mm |
| Db max | = | 35.8mm |
| ra max | = | 0.6mm |
| rb max | = | 0.6mm |
