SKU: 7204BECBM-SKF

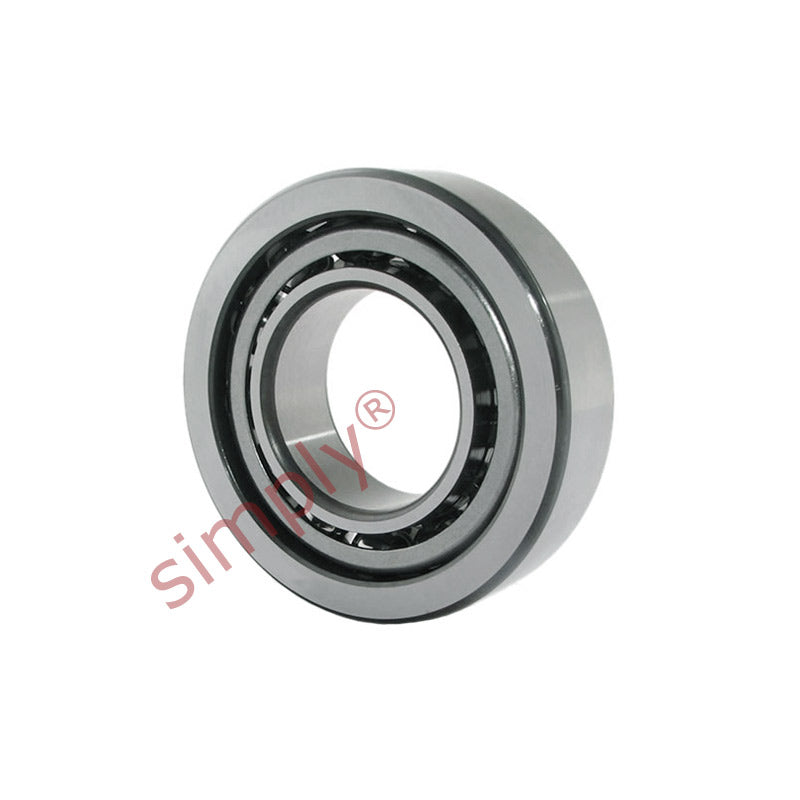

SKF 7204BECBM Single Row Angular Contact Ball Bearing 20x47x14mm
- Regular price
- €77.33 ex VAT
- Sale price
- €77,33
- Regular price
-
ex VAT
Not in stock
Quantity Price Breaks
4
€68.82
8
€64.96
12
€64.18
16
€63.41
25
€62.64
50
€61.86
99
€58.00
199
€57.22
249
€56.45
499
€55.68
999
€54.13
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Technical
| d | = | 20mm |
| D | = | 47mm |
| B | = | 14mm |
| Dynamic load Cr | = | 13.3 kN |
| Static load Cor | = | 7.65 kN |
| Fatigue load limit Pu | = | 0.325 kN |
| Reference speed | = | 18000 rpm |
| Limit speed | = | 19000 rpm |
| Weight | = | 0.11 kg |
| d1 | = | 30.8mm |
| d2 | = | 25.9mm |
| D1 | = | 36.5mm |
| r1r2 min | = | 1mm |
| r3r4 min | = | 0.6mm |
| a | = | 21mm |
| da min | = | 25.6mm |
| Da max | = | 41.4mm |
| Db max | = | 42.8mm |
| ra max | = | 1mm |
| rb max | = | 0.6mm |
