SKU: 7205BECBM-SKF
SKF 7205BECBM Single Row Angular Contact Ball Bearing 25x52x15mm
- Regular price
- €84.51 ex VAT
- Sale price
- €84,51
- Regular price
-
Not in stock
Quantity Price Breaks
4
€75.21
8
€70.99
12
€70.14
16
€69.30
25
€68.45
50
€67.61
99
€63.38
199
€62.54
249
€61.69
499
€60.85
999
€59.16
SKU:
7205BECBM-SKF
SKF 7205BECBM Single Row Angular Contact Ball Bearing 25x52x15mm
- Regular price
- €84.51 ex VAT
- Sale price
- €84,51
- Regular price
-
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Benefits: Compact, rigid, accommodates tilting, radial and axial loads

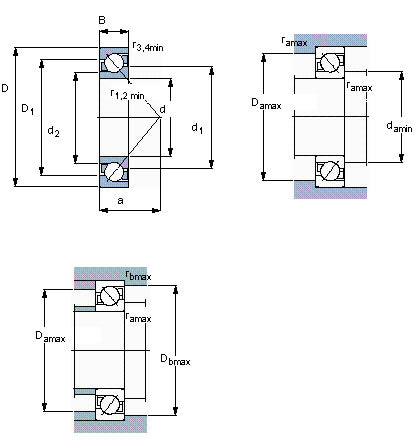

Technical
| d | = | 25mm |
| D | = | 52mm |
| B | = | 15mm |
| Dynamic load Cr | = | 15.6 kN |
| Static load Cor | = | 10 kN |
| Fatigue load limit Pu | = | 0.43 kN |
| Reference speed | = | 17000 rpm |
| Limit speed | = | 17000 rpm |
| Weight | = | 0.14 kg |
| d1 | = | 36.1mm |
| d2 | = | 30.9mm |
| D1 | = | 41.5mm |
| r1r2 min | = | 1mm |
| r3r4 min | = | 0.6mm |
| a | = | 23.7mm |
| da min | = | 30.6mm |
| Da max | = | 46.4mm |
| Db max | = | 47.8mm |
| ra max | = | 1mm |
| rb max | = | 0.6mm |
