SKU: 7207BECBM-SKF

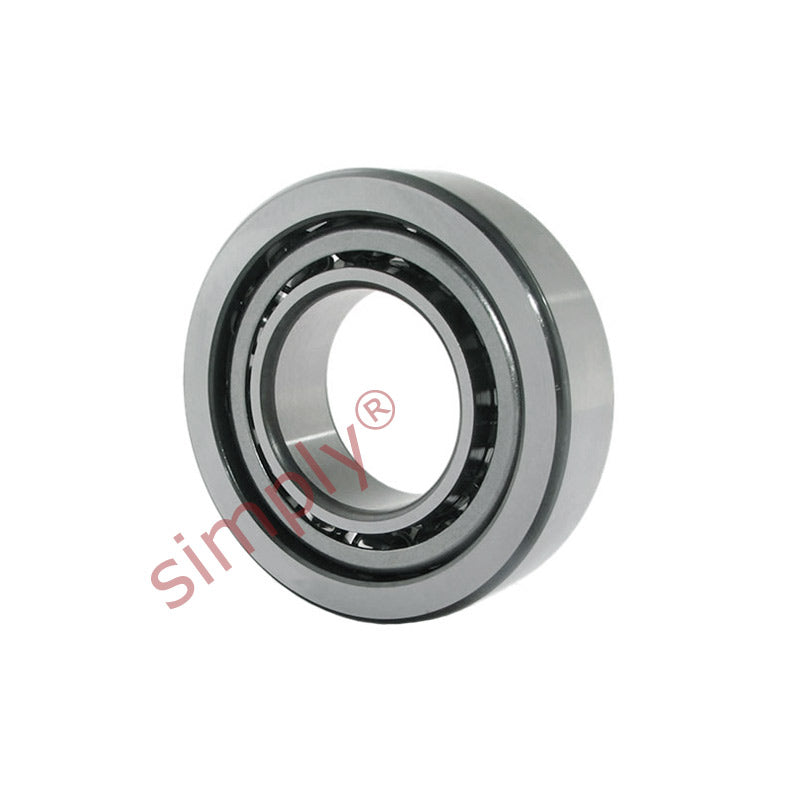

SKF 7207BECBM Single Row Angular Contact Ball Bearing 35x72x17mm
- Regular price
- €103.52 ex VAT
- Sale price
- €103,52
- Regular price
-
In stock
Quantity Price Breaks
4
€92.13
8
€86.96
12
€85.92
16
€84.89
25
€83.85
50
€82.82
99
€77.64
199
€76.60
249
€75.57
499
€74.53
999
€72.46
SKU:
7207BECBM-SKF
SKF 7207BECBM Single Row Angular Contact Ball Bearing 35x72x17mm
- Regular price
- €103.52 ex VAT
- Sale price
- €103,52
- Regular price
-
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Technical
| d | = | 35mm |
| D | = | 72mm |
| B | = | 17mm |
| Dynamic load Cr | = | 31 kN |
| Static load Cor | = | 20.8 kN |
| Fatigue load limit Pu | = | 0.88 kN |
| Reference speed | = | 12000 rpm |
| Limit speed | = | 12000 rpm |
| Weight | = | 0.3 kg |
| d1 | = | 49.7mm |
| d2 | = | 42mm |
| D1 | = | 58.3mm |
| r1r2 min | = | 1.1mm |
| r3r4 min | = | 0.6mm |
| a | = | 31mm |
| da min | = | 42mm |
| Da max | = | 65mm |
| Db max | = | 67.8mm |
| ra max | = | 1mm |
| rb max | = | 0.6mm |
