SKU: 7207BEP-SKF

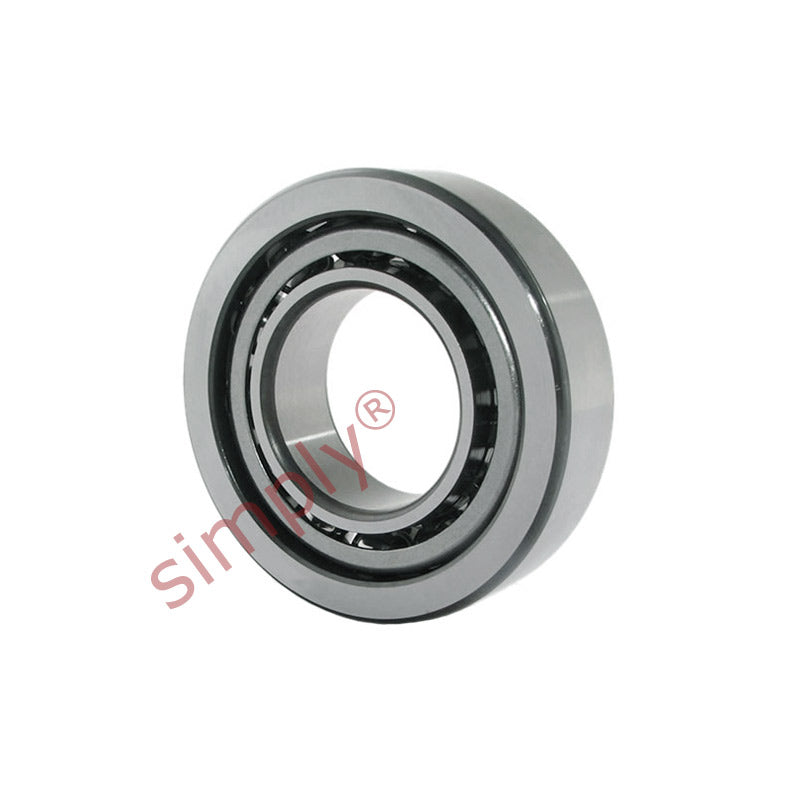

SKF 7207BEP Single Row Angular Contact Ball Bearing 35x72x17mm
- Regular price
- €39.04 ex VAT
- Sale price
- €39,04
- Regular price
-
In stock
Quantity Price Breaks
4
€34.75
8
€32.79
12
€32.40
16
€32.01
25
€31.62
50
€31.23
99
€29.28
199
€28.89
249
€28.50
499
€28.11
999
€27.33
SKU:
7207BEP-SKF
SKF 7207BEP Single Row Angular Contact Ball Bearing 35x72x17mm
- Regular price
- €39.04 ex VAT
- Sale price
- €39,04
- Regular price
-
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Technical
| d | = | 35mm |
| D | = | 72mm |
| B | = | 17mm |
| Dynamic load Cr | = | 29.1 kN |
| Static load Cor | = | 19 kN |
| Fatigue load limit Pu | = | 0.815 kN |
| Reference speed | = | 11000 rpm |
| Limit speed | = | 11000 rpm |
| Weight | = | 0.28 kg |
| d1 | = | 49.7mm |
| d2 | = | 42mm |
| D1 | = | 58.3mm |
| r1r2 min | = | 1.1mm |
| r3r4 min | = | 0.6mm |
| a | = | 31mm |
| da min | = | 42mm |
| Da max | = | 65mm |
| Db max | = | 67.8mm |
| ra max | = | 1mm |
| rb max | = | 0.6mm |
