SKU: 7211BECBY-SKF

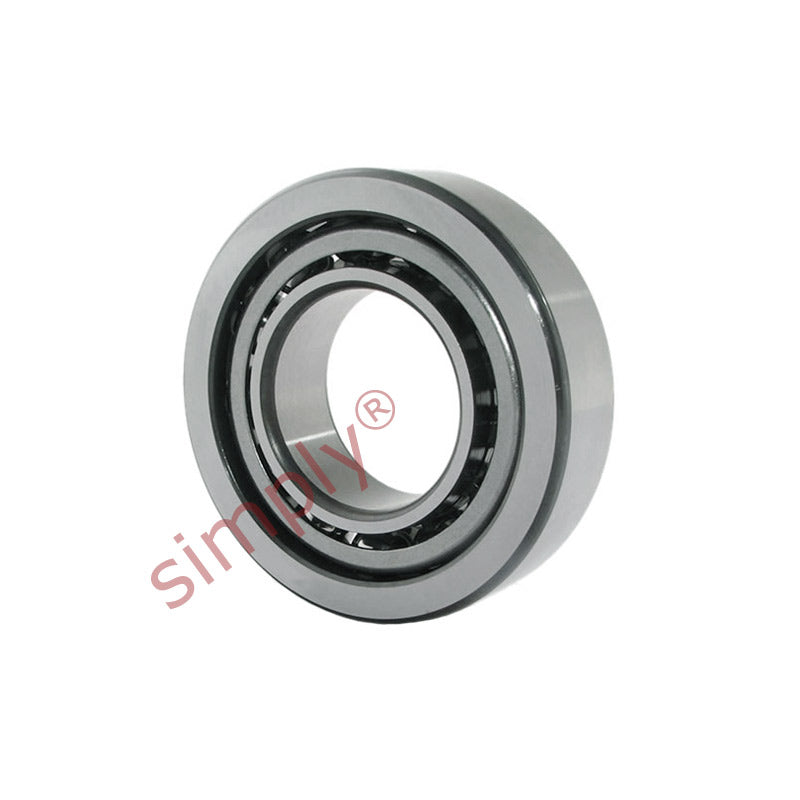

SKF 7211BECBY Single Row Angular Contact Ball Bearing 55x100x21mm
- Regular price
- €157.51 ex VAT
- Sale price
- €157,51
- Regular price
-
Not in stock
Quantity Price Breaks
4
€140.18
8
€132.31
12
€130.73
16
€129.16
25
€127.58
50
€126.01
99
€118.13
199
€116.56
249
€114.98
499
€113.41
999
€110.26
SKU:
7211BECBY-SKF
SKF 7211BECBY Single Row Angular Contact Ball Bearing 55x100x21mm
- Regular price
- €157.51 ex VAT
- Sale price
- €157,51
- Regular price
-
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Technical
| d | = | 55mm |
| D | = | 100mm |
| B | = | 21mm |
| Dynamic load Cr | = | 48.8 kN |
| Static load Cor | = | 38 kN |
| Fatigue load limit Pu | = | 1.63 kN |
| Reference speed | = | 7500 rpm |
| Limit speed | = | 7500 rpm |
| Weight | = | 0.62 kg |
| d1 | = | 72.7mm |
| d2 | = | 63.6mm |
| D1 | = | 83.3mm |
| r1r2 min | = | 1.5mm |
| r3r4 min | = | 1mm |
| a | = | 43mm |
| da min | = | 64mm |
| Da max | = | 91mm |
| Db max | = | 94mm |
| ra max | = | 1.5mm |
| rb max | = | 1mm |
