SKU: 7212BECBY-SKF

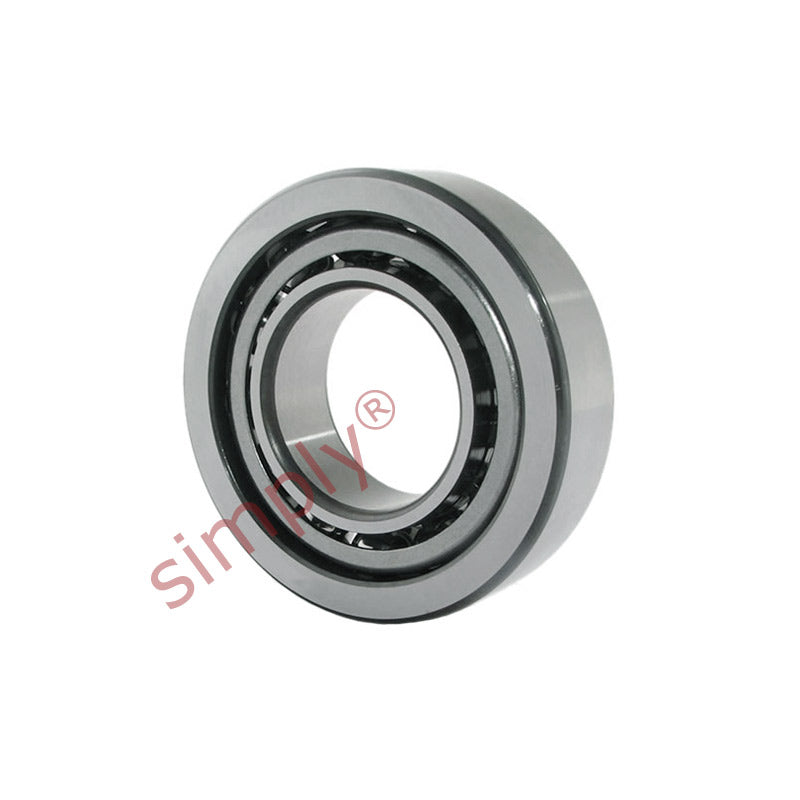

SKF 7212BECBY Single Row Angular Contact Ball Bearing 60x110x22mm
- Regular price
- €162.35 ex VAT
- Sale price
- €162,35
- Regular price
-
Not in stock
Quantity Price Breaks
4
€144.49
8
€136.37
12
€134.75
16
€133.13
25
€131.50
50
€129.88
99
€121.76
199
€120.14
249
€118.52
499
€116.89
999
€113.65
SKU:
7212BECBY-SKF
SKF 7212BECBY Single Row Angular Contact Ball Bearing 60x110x22mm
- Regular price
- €162.35 ex VAT
- Sale price
- €162,35
- Regular price
-
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Technical
| d | = | 60mm |
| D | = | 110mm |
| B | = | 22mm |
| Dynamic load Cr | = | 57.2 kN |
| Static load Cor | = | 45.5 kN |
| Fatigue load limit Pu | = | 1.93 kN |
| Reference speed | = | 7000 rpm |
| Limit speed | = | 7000 rpm |
| Weight | = | 0.83 kg |
| d1 | = | 79.6mm |
| d2 | = | 69.3mm |
| D1 | = | 91.6mm |
| r1r2 min | = | 1.5mm |
| r3r4 min | = | 1mm |
| a | = | 47mm |
| da min | = | 69mm |
| Da max | = | 101mm |
| Db max | = | 104mm |
| ra max | = | 1.5mm |
| rb max | = | 1mm |
