SKU: 7301BEP-SKF

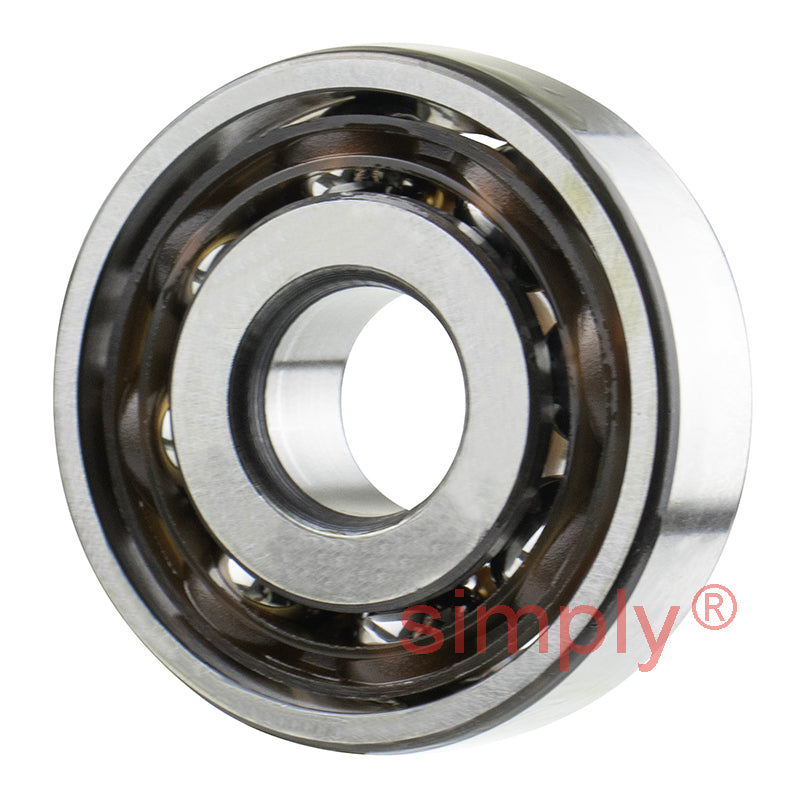

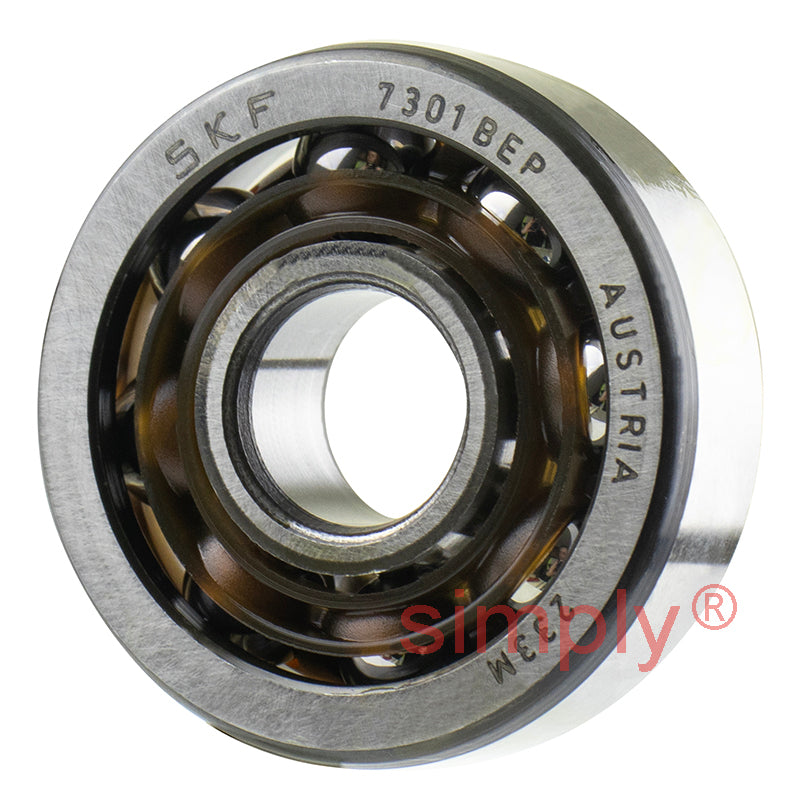

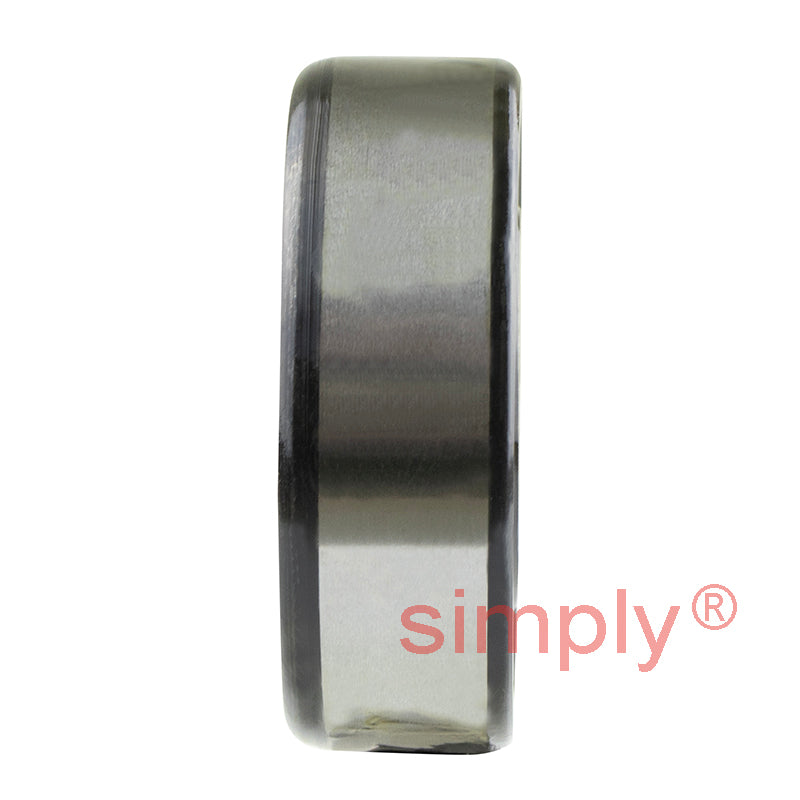

SKF 7301BEP Single Row Angular Contact Ball Bearing 12x37x12mm
- Regular price
- €55.89 ex VAT
- Sale price
- €55,89
- Regular price
-
In stock
Quantity Price Breaks
4
€49.74
8
€46.95
12
€46.39
16
€45.83
25
€45.27
50
€44.71
99
€41.92
199
€41.36
249
€40.80
499
€40.24
999
€39.12
SKU:
7301BEP-SKF
SKF 7301BEP Single Row Angular Contact Ball Bearing 12x37x12mm
- Regular price
- €55.89 ex VAT
- Sale price
- €55,89
- Regular price
-
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Technical
| d | = | 12mm |
| D | = | 37mm |
| B | = | 12mm |
| Dynamic load Cr | = | 10.6 kN |
| Static load Cor | = | 5 kN |
| Fatigue load limit Pu | = | 0.208 kN |
| Reference speed | = | 24000 rpm |
| Limit speed | = | 24000 rpm |
| Weight | = | 0.063 kg |
| d1 | = | 21.8mm |
| d2 | = | 17mm |
| D1 | = | 28.3mm |
| r1r2 min | = | 1mm |
| r3r4 min | = | 0.6mm |
| a | = | 16.3mm |
| da min | = | 17.6mm |
| Da max | = | 31.4mm |
| Db max | = | 32.8mm |
| ra max | = | 1mm |
| rb max | = | 0.6mm |
