SKU: 7302BECBP-SKF

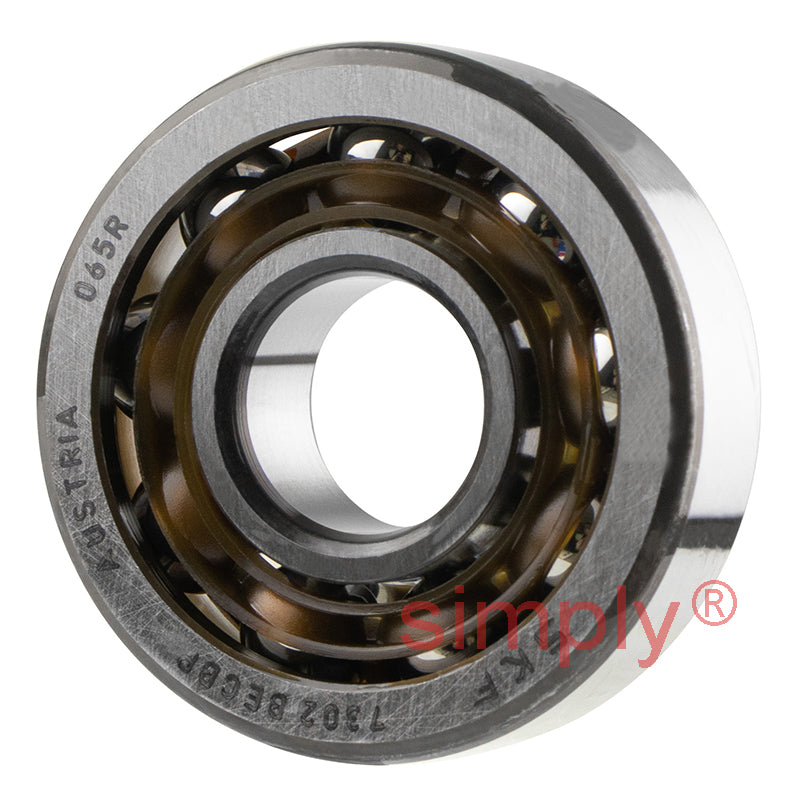

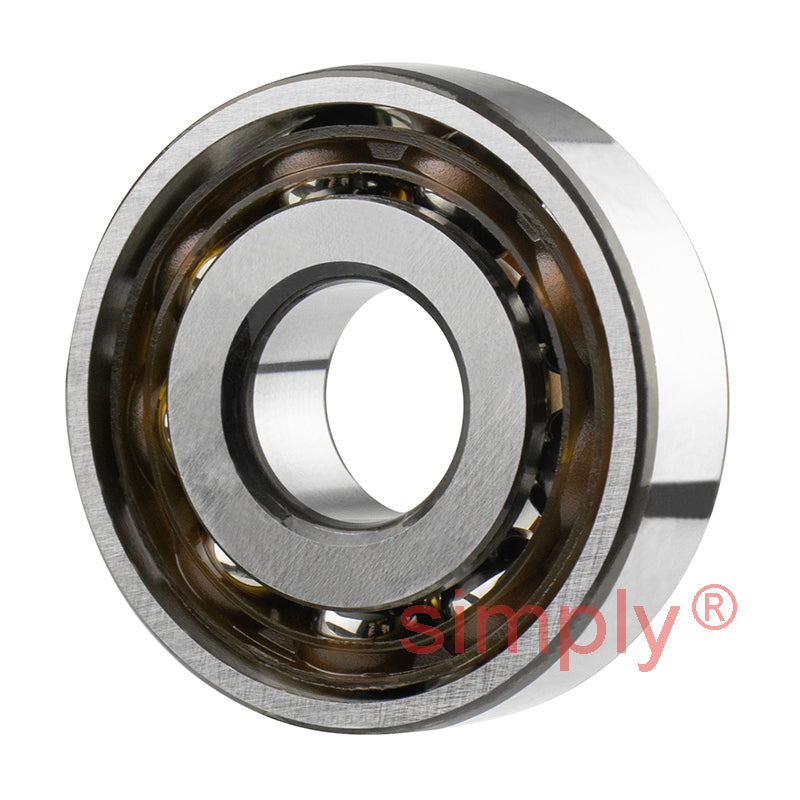

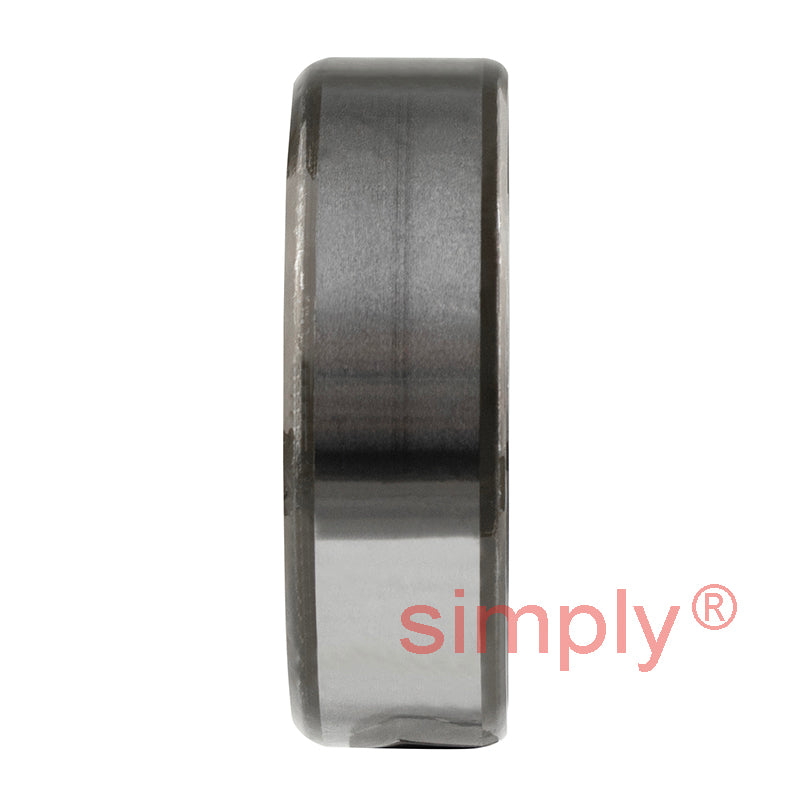

SKF 7302BECBP Single Row Angular Contact Ball Bearing 15x42x13mm
- Regular price
- €63.83 ex VAT
- Sale price
- €63,83
- Regular price
-
In stock
Quantity Price Breaks
4
€56.81
8
€53.62
12
€52.98
16
€52.34
25
€51.70
50
€51.06
99
€47.87
199
€47.23
249
€46.60
499
€45.96
999
€44.68
SKU:
7302BECBP-SKF
SKF 7302BECBP Single Row Angular Contact Ball Bearing 15x42x13mm
- Regular price
- €63.83 ex VAT
- Sale price
- €63,83
- Regular price
-
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Technical
| d | = | 15mm |
| D | = | 42mm |
| B | = | 13mm |
| Dynamic load Cr | = | 13 kN |
| Static load Cor | = | 6.7 kN |
| Fatigue load limit Pu | = | 0.28 kN |
| Reference speed | = | 20000 rpm |
| Limit speed | = | 20000 rpm |
| Weight | = | 0.081 kg |
| d1 | = | 26mm |
| d2 | = | 20.7mm |
| D1 | = | 32.6mm |
| r1r2 min | = | 1mm |
| r3r4 min | = | 0.6mm |
| a | = | 18.6mm |
| da min | = | 20.6mm |
| Da max | = | 36.4mm |
| Db max | = | 37.8mm |
| ra max | = | 1mm |
| rb max | = | 0.6mm |
