SKU: 7304BECBM-SKF

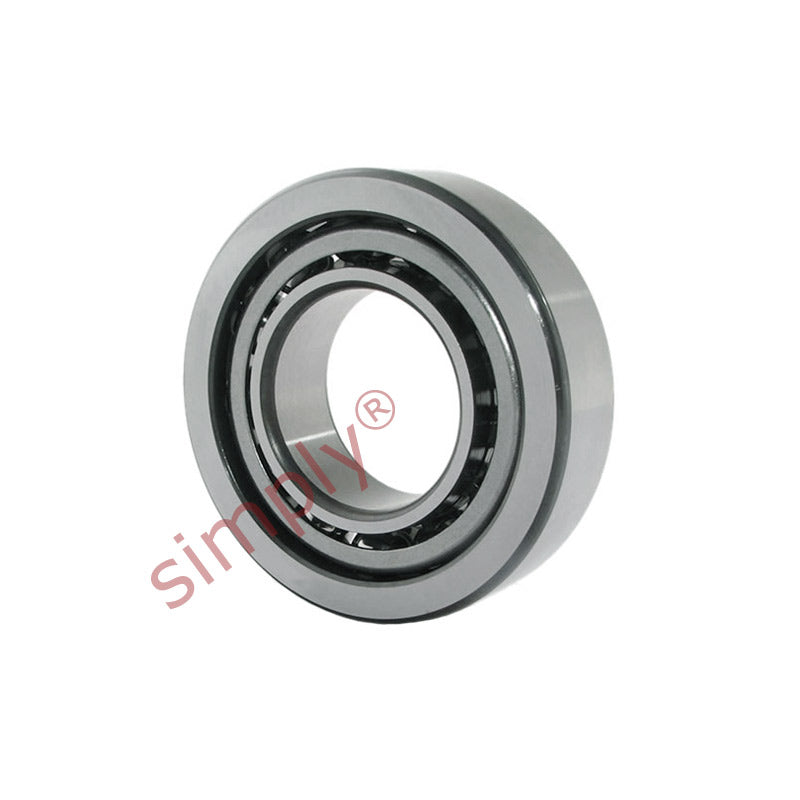

SKF 7304BECBM Single Row Angular Contact Ball Bearing 20x52x15mm
- Regular price
- €72.39 ex VAT
- Sale price
- €72,39
- Regular price
-
ex VAT
In stock
Quantity Price Breaks
4
€64.43
8
€60.81
12
€60.08
16
€59.36
25
€58.64
50
€57.91
99
€54.29
199
€53.57
249
€52.84
499
€52.12
999
€50.67
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Technical
| d | = | 20mm |
| D | = | 52mm |
| B | = | 15mm |
| Dynamic load Cr | = | 19 kN |
| Static load Cor | = | 10 kN |
| Fatigue load limit Pu | = | 0.425 kN |
| Reference speed | = | 18000 rpm |
| Limit speed | = | 18000 rpm |
| Weight | = | 0.15 kg |
| d1 | = | 33.3mm |
| d2 | = | 26.8mm |
| D1 | = | 40.4mm |
| r1r2 min | = | 1.1mm |
| r3r4 min | = | 0.6mm |
| a | = | 22.8mm |
| da min | = | 27mm |
| Da max | = | 45mm |
| Db max | = | 47.8mm |
| ra max | = | 1mm |
| rb max | = | 0.6mm |
