SKU: 7309BECBM-SKF

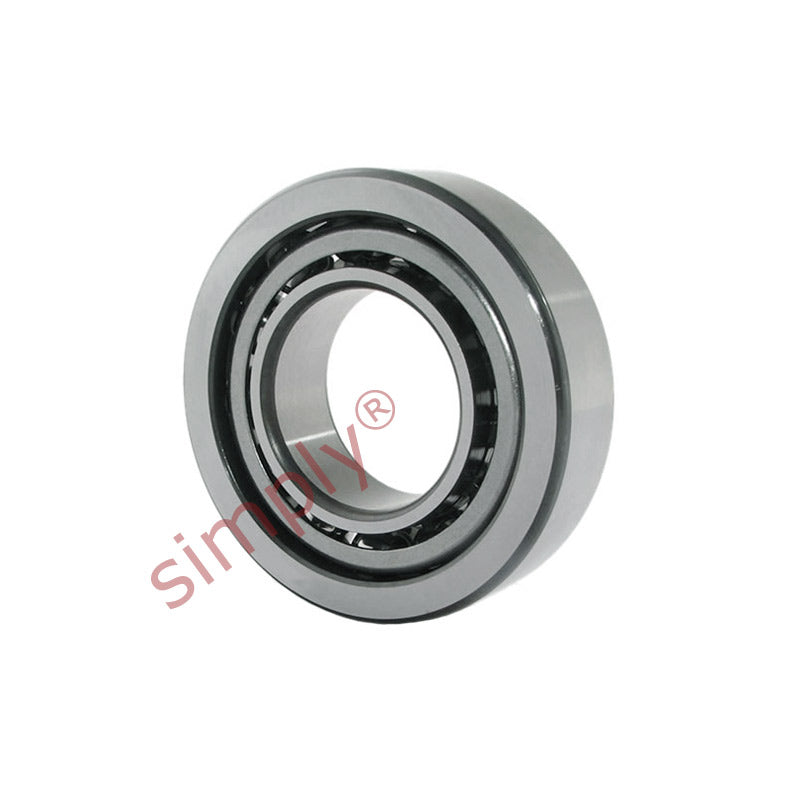

SKF 7309BECBM Single Row Angular Contact Ball Bearing 45x100x25mm
- Regular price
- €182.06 ex VAT
- Sale price
- €182,06
- Regular price
-
Not in stock
Quantity Price Breaks
4
€162.03
8
€152.93
12
€151.11
16
€149.29
25
€147.47
50
€145.65
99
€136.55
199
€134.72
249
€132.90
499
€131.08
999
€127.44
SKU:
7309BECBM-SKF
SKF 7309BECBM Single Row Angular Contact Ball Bearing 45x100x25mm
- Regular price
- €182.06 ex VAT
- Sale price
- €182,06
- Regular price
-
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Technical
| d | = | 45mm |
| D | = | 100mm |
| B | = | 25mm |
| Dynamic load Cr | = | 61 kN |
| Static load Cor | = | 40.5 kN |
| Fatigue load limit Pu | = | 1.73 kN |
| Reference speed | = | 9000 rpm |
| Limit speed | = | 9000 rpm |
| Weight | = | 0.9 kg |
| d1 | = | 66.5mm |
| d2 | = | 55.3mm |
| D1 | = | 79.8mm |
| r1r2 min | = | 1.5mm |
| r3r4 min | = | 1mm |
| a | = | 43mm |
| da min | = | 54mm |
| Da max | = | 91mm |
| Db max | = | 94.4mm |
| ra max | = | 1.5mm |
| rb max | = | 1mm |
