SKU: 7310BECBP-SKF

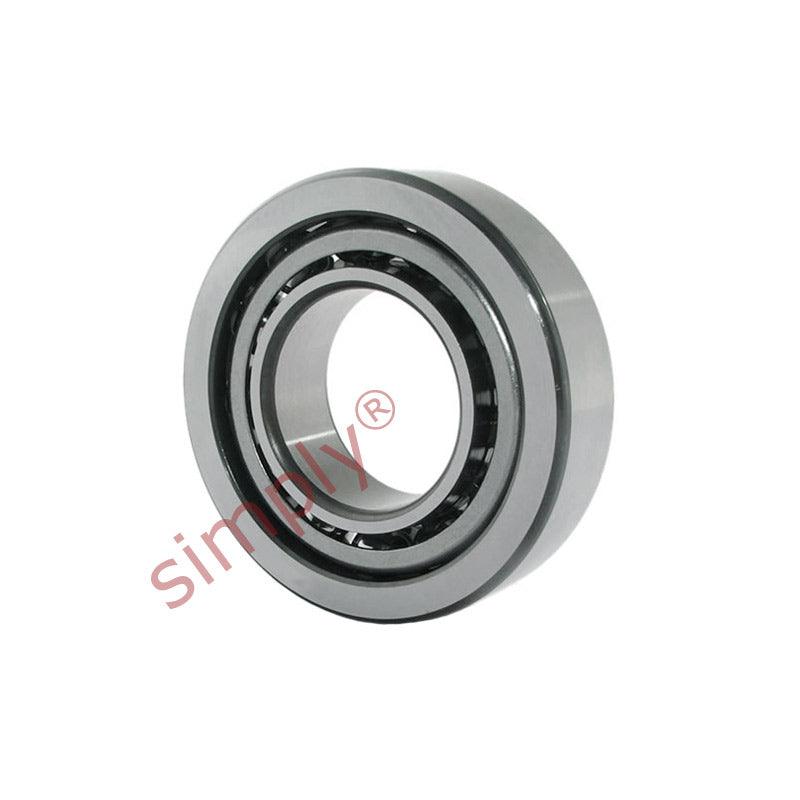

SKF 7310BECBP Single Row Angular Contact Ball Bearing 50x110x27mm
- Regular price
- €122.84 ex VAT
- Sale price
- €122,84
- Regular price
-
In stock
Quantity Price Breaks
4
€109.33
8
€103.19
12
€101.96
16
€100.73
25
€99.50
50
€98.27
99
€92.13
199
€90.90
249
€89.67
499
€88.44
999
€85.99
SKU:
7310BECBP-SKF
SKF 7310BECBP Single Row Angular Contact Ball Bearing 50x110x27mm
- Regular price
- €122.84 ex VAT
- Sale price
- €122,84
- Regular price
-
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Technical
| d | = | 50mm |
| D | = | 110mm |
| B | = | 27mm |
| Dynamic load Cr | = | 75 kN |
| Static load Cor | = | 51 kN |
| Fatigue load limit Pu | = | 2.16 kN |
| Reference speed | = | 8000 rpm |
| Limit speed | = | 8000 rpm |
| Weight | = | 1.04 kg |
| d1 | = | 73.8mm |
| d2 | = | 61.1mm |
| D1 | = | 88.8mm |
| r1r2 min | = | 2mm |
| r3r4 min | = | 1mm |
| a | = | 47mm |
| da min | = | 61mm |
| Da max | = | 99mm |
| Db max | = | 104mm |
| ra max | = | 2mm |
| rb max | = | 1mm |
