SKU: 8.5SS316-JUB

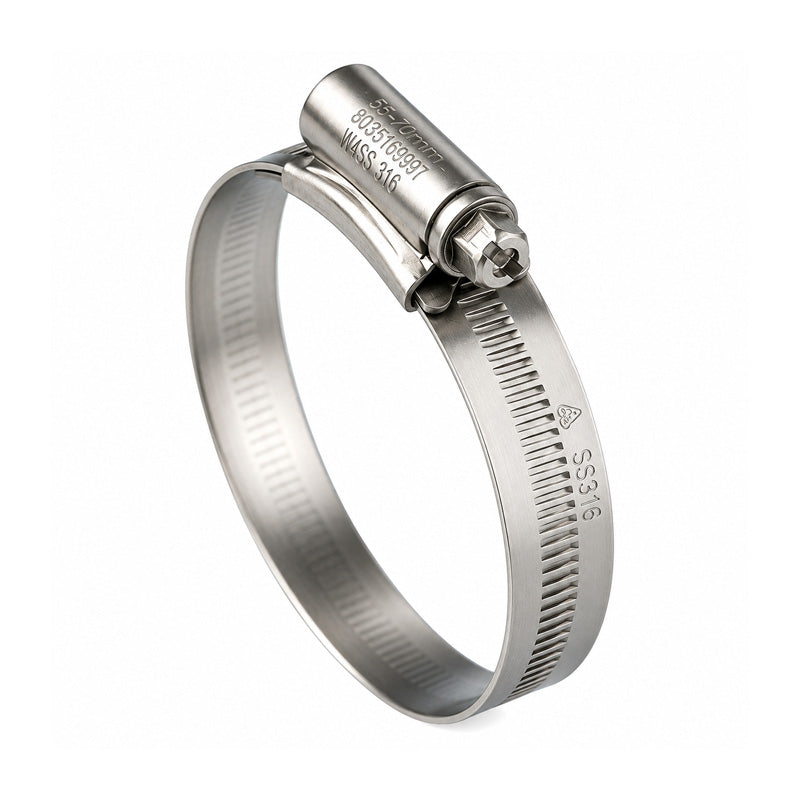

8.5SS316 316 Stainless Steel HNSS Original Jubilee Clip Adjustment Range 184mm - 216mm Band Width 13mm
- Regular price
- €11.63 ex VAT
- Sale price
- €11,63
- Regular price
-
In stock
Quantity Price Breaks
3
€10.35
5
€9.77
9
€9.65
19
€9.54
49
€9.42
74
€9.30
99
€8.72
199
€8.61
249
€8.49
499
€8.37
999
€8.14
SKU:
8.5SS316-JUB
8.5SS316 316 Stainless Steel HNSS Original Jubilee Clip Adjustment Range 184mm - 216mm Band Width 13mm
- Regular price
- €11.63 ex VAT
- Sale price
- €11,63
- Regular price
-
Description
316 Stainless Steel HNSS Worm Drive Jubilee Clips: The original Jubilee® Clips. Suitable for most day to day needs in the automotive, agricultural, irrigation and farm machinery.
Benefits: Rolled edges provide protection to softer hoses.
Technical
| BS No. | = | 216 |
| Adjustment Range | = | 184mm - 216mm |
| Adjustment Range | = | 7-1/4 - 8-1/2 inch |
| Band Width (+/- 0.1) | = | 13mm |
| Band Thickness (+/- 0.1) | = | 0.914mm |
| Recommended Torque | = | 5.9Nm |
| Maximum Torque | = | 7.9Nm |
| Maximum Pressure | = | 18 Psi |
