SKU: 80-1-NO30-MB
Branded 80-1-NO30 ANSI / AS Simplex Chain Double Cranked Link 1 inch Pitch
- Regular price
- €10.50 ex VAT
- Sale price
- €10,50
- Regular price
-
In stock
Quantity Price Breaks
2
€9.35
5
€8.82
10
€8.72
29
€8.61
49
€8.51
75
€8.40
100
€7.88
200
€7.77
250
€7.67
500
€7.56
1000
€7.35
SKU:
80-1-NO30-MB
Branded 80-1-NO30 ANSI / AS Simplex Chain Double Cranked Link 1 inch Pitch
- Regular price
- €10.50 ex VAT
- Sale price
- €10,50
- Regular price
-
Description

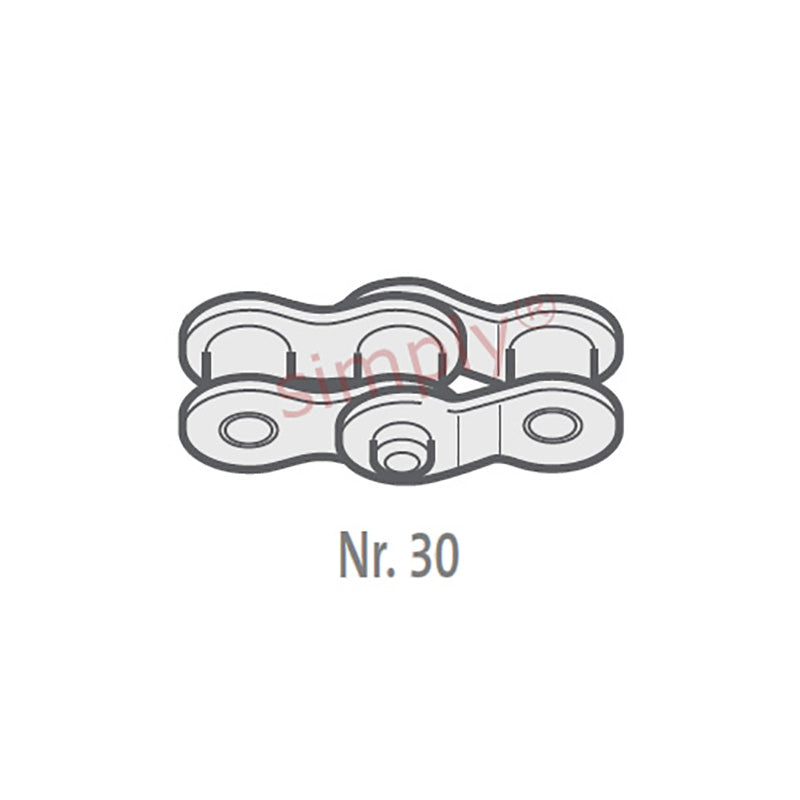

Branded DOL / No. 30 ANSI Simplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin.
Technical
| Pitch (A) | = | 1 inch |
| Pitch (A) | = | 25.4mm |
| Inside Width min (B) | = | 15.75mm |
| Roller Diameter max (C) | = | 15.88mm |
| Plate Height max (D) | = | 24.1mm |
| Plate Width Inner max (E) | = | 3.1mm |
| Plate Width Outer max (F) | = | 3.1mm |
| Pin Diameter max (G) | = | 7.92mm |
| Pin Length max (H1) | = | 32.8mm |
| Connecting Link Extension max (J) | = | 2.1mm |
| ISO606 Tensile Strength min | = | 55600 N |
| Weight | = | 0.02kg/m |
