SKU: 80-3-SYN-NO58-RENOLD
Renold Synergy 80-3-NO58 ANSI / AS Triplex Chain Cottered Connecting Link 1 inch Pitch
- Regular price
- €103.98 ex VAT
- Sale price
- €103,98
- Regular price
-
Not in stock
Quantity Price Breaks
2
€92.54
5
€87.34
10
€86.30
29
€85.26
49
€84.22
75
€83.18
100
€77.99
200
€76.95
250
€75.91
500
€74.87
1000
€72.79
SKU:
80-3-SYN-NO58-RENOLD
Renold Synergy 80-3-NO58 ANSI / AS Triplex Chain Cottered Connecting Link 1 inch Pitch
- Regular price
- €103.98 ex VAT
- Sale price
- €103,98
- Regular price
-
Description

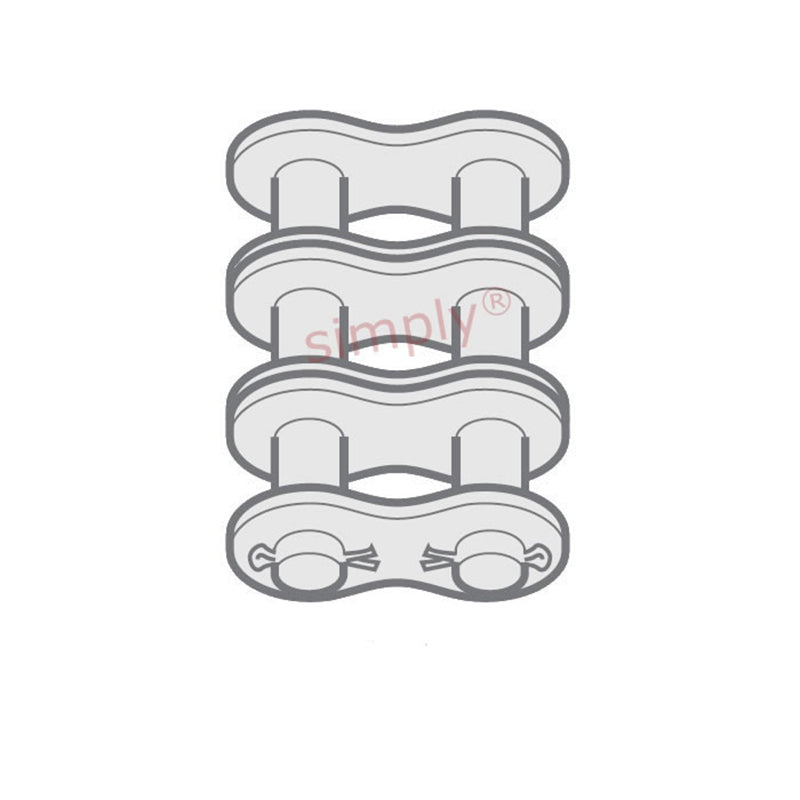

| Renold No. 58 ANSI Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
Technical
| Pitch (A) | = | 1 inch |
| Pitch (A) | = | 25.4mm |
| Inside Width min (B) | = | 15.75mm |
| Roller Diameter max (C) | = | 15.88mm |
| Plate Height max (D) | = | 24.13mm |
| Plate Width Inner max (E) | = | 3.25mm |
| Plate Width Outer max (F) | = | 3.25mm |
| Pin Diameter max (G) | = | 7.94mm |
| Pin Length max (H2) | = | 91.2mm |
| Connecting Link Extension max (J) | = | 3mm |
| Transverse Pitch nom (K) | = | 29.29mm |
| ISO606 Tensile Strength min | = | 166800 N |
| Weight | = | 0.01kg/m |
