SKU: 81109.TN.MB

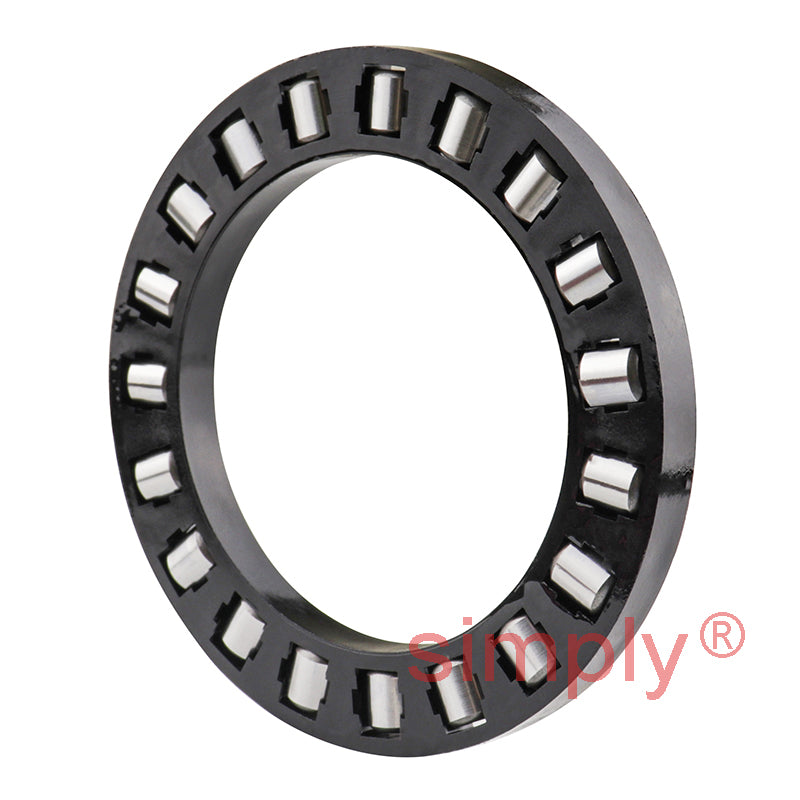

Major Brand 81109TN Cylindrical Roller Thrust Bearing with Nylon Cage 45x65x14mm
- Regular price
- €44.57 ex VAT
- Sale price
- €44,57
- Regular price
-
In stock
Quantity Price Breaks
10
€39.67
19
€37.44
29
€36.99
39
€36.55
49
€36.10
74
€35.66
99
€33.43
199
€32.98
249
€32.54
499
€32.09
999
€31.20
SKU:
81109.TN.MB
Major Brand 81109TN Cylindrical Roller Thrust Bearing with Nylon Cage 45x65x14mm
- Regular price
- €44.57 ex VAT
- Sale price
- €44,57
- Regular price
-
Description
|

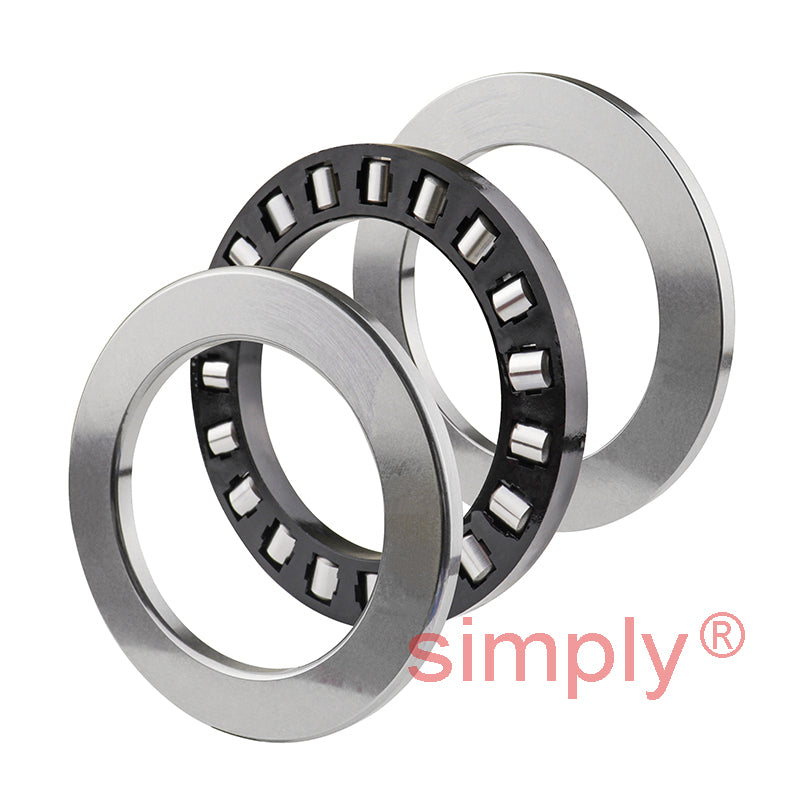

Cylindrical Roller Thrust Bearings: Ideally suited to arrangements that require support for heavy radial loads. They are relatively insensitive to shock loads in operation and are reasonably stiff in operation requiring little axial space. The cylindrical surface of the rollers are slightly relieved towards the inner end to relieve / eliminate edge stresses. They are separable by design to facilitate ease of mounting and assembly. |
Technical
| d | = | 45mm |
| D | = | 65mm |
| H | = | 14mm |
| Dynamic load C | = | 45 kN |
| Static load Co | = | 153 kN |
| Fatigue load limit Pu | = | 15.3 kN |
| Min load factor A | = | 0.0014 |
| Reference speed | = | 2200 rpm |
| Limiting speed | = | 4500 rpm |
| Cage reference | = | K81109TN |
| Weight | = | 0.13 kg |
