SKU: 81111.MB
Major Brand 81111 Cylindrical Roller Thrust Bearing with Steel Cage 55x78x16mm
- Regular price
- €61.14 ex VAT
- Sale price
- €61,14
- Regular price
-
Not in stock
Quantity Price Breaks
10
€54.41
19
€51.36
29
€50.75
39
€50.13
49
€49.52
74
€48.91
99
€45.86
199
€45.24
249
€44.63
499
€44.02
999
€42.80
SKU:
81111.MB
Major Brand 81111 Cylindrical Roller Thrust Bearing with Steel Cage 55x78x16mm
- Regular price
- €61.14 ex VAT
- Sale price
- €61,14
- Regular price
-
Description
|
Cylindrical Roller Thrust Bearings: Ideally suited to arrangements that require support for heavy radial loads. They are relatively insensitive to shock loads in operation and are reasonably stiff in operation requiring little axial space. The cylindrical surface of the rollers are slightly relieved towards the inner end to relieve / eliminate edge stresses. They are separable by design to facilitate ease of mounting and assembly. |

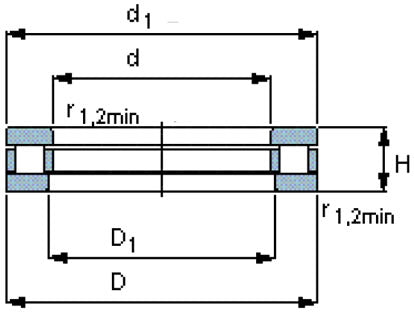

Technical
| d | = | 55mm |
| D | = | 78mm |
| H | = | 16mm |
| Dynamic load C | = | 69.5 kN |
| Static load Co | = | 285 kN |
| Fatigue load limit Pu | = | 29 kN |
| Min load factor A | = | 0.007 |
| Reference speed | = | 1900 rpm |
| Limiting speed | = | 3800 rpm |
| Cage reference | = | |
| Weight | = | 0.23 kg |
