SKU: 81244M.EU

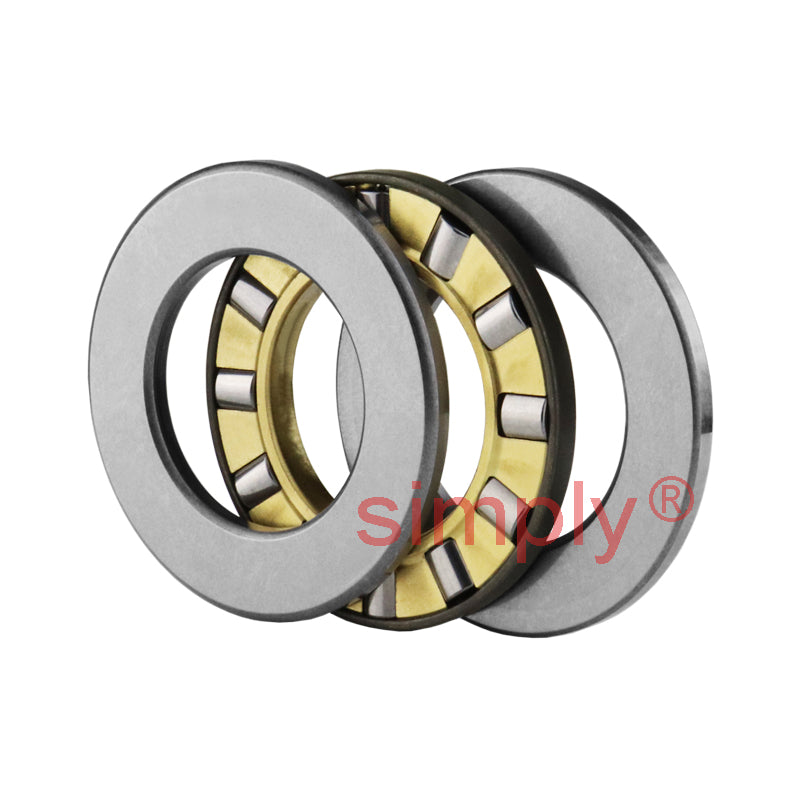

Premier Budget 81244M Cylindrical Roller Thrust Bearing with Brass Cage 220x300x63mm
- Regular price
- €1.149.49 ex VAT
- Sale price
- €1.149,49
- Regular price
-
Not in stock
Quantity Price Breaks
10
€1.023.05
19
€965.57
29
€954.08
39
€942.58
49
€931.09
74
€919.59
99
€862.12
199
€850.62
249
€839.13
499
€827.63
999
€804.64
SKU:
81244M.EU
Premier Budget 81244M Cylindrical Roller Thrust Bearing with Brass Cage 220x300x63mm
- Regular price
- €1.149.49 ex VAT
- Sale price
- €1.149,49
- Regular price
-
Description
|
Cylindrical Roller Thrust Bearings: Ideally suited to arrangements that require support for heavy radial loads. They are relatively insensitive to shock loads in operation and are reasonably stiff in operation requiring little axial space. The cylindrical surface of the rollers are slightly relieved towards the inner end to relieve / eliminate edge stresses. They are separable by design to facilitate ease of mounting and assembly. |
Technical
| d | = | 220mm |
| D | = | 300mm |
| H | = | 63mm |
| Dynamic load C | = | 750 kN |
| Static load Co | = | 3350 kN |
| Fatigue load limit Pu | = | 275 kN |
| Min load factor A | = | 0.9 |
| Reference speed | = | 480 rpm |
| Limiting speed | = | 950 rpm |
| Cage reference | = | K81244M |
| Weight | = | 13 kg |
