SKU: 87500

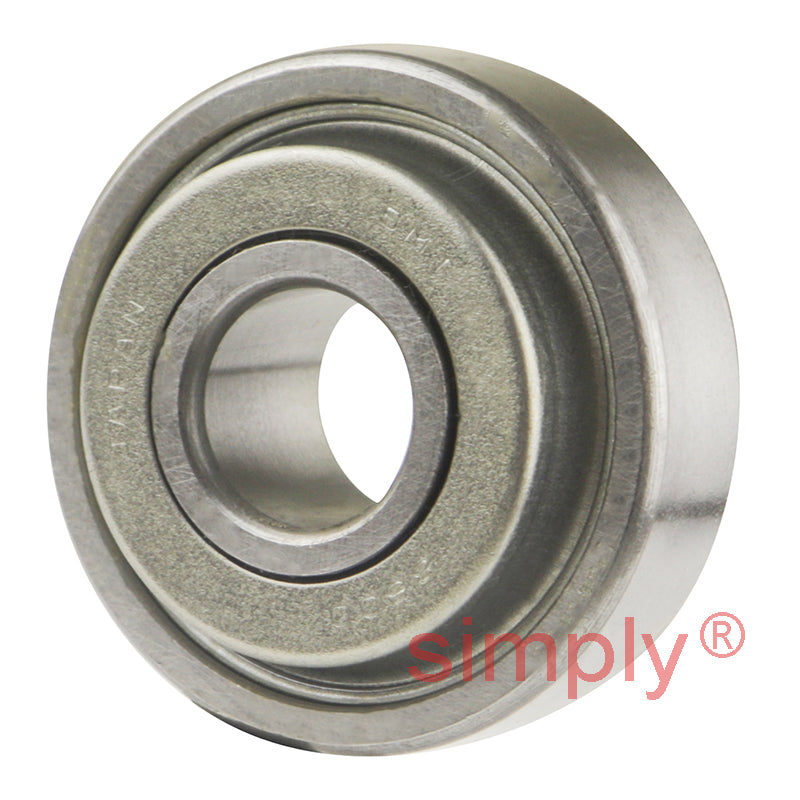

87500 Deep Groove Ball Bearing with Extended Inner Ring Felt Front Seal and Steel Back Seal 10x30x12.7mm
- Regular price
- €35.46 ex VAT
- Sale price
- €35,46
- Regular price
-
In stock
Quantity Price Breaks
10
€31.56
19
€29.79
29
€29.43
39
€29.08
49
€28.72
74
€28.37
99
€26.60
199
€26.24
249
€25.89
499
€25.53
999
€24.82
SKU:
87500
87500 Deep Groove Ball Bearing with Extended Inner Ring Felt Front Seal and Steel Back Seal 10x30x12.7mm
- Regular price
- €35.46 ex VAT
- Sale price
- €35,46
- Regular price
-
Description
|
Specialist Shielded Ball Bearing: This bearing consist of chrome steel ball bearings and raceways with an extended inner raceway, additionally the inner raceway is recessed on the back of the bearing. Please refer to the technical tab for dimensions. Benefits: Felt / Metal shielded on the front, extended inner race, metal shielded on the back. |

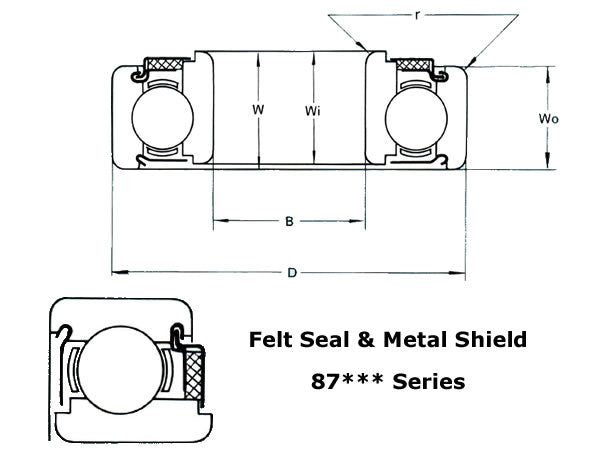

Technical
| B | = | 10mm = 0.3937 inch |
| D | = | 30mm = 1.1811 inch |
| W | = | 12.7mm = 0.5 inch |
| Tolerance +0.0000 to minus | = | 0.0003 inch |
| Wo | = | 0.354 inch |
| Wi | = | 0.48 inch |
| r | = | 0.025 inch |
| No. of balls | = | 8 |
| Ball diameter | = | 3/16 inch |
| Static load | = | 400 kN |
| Dynamic load | = | 229 kN |
| Weight | = | 0.037 kg |
