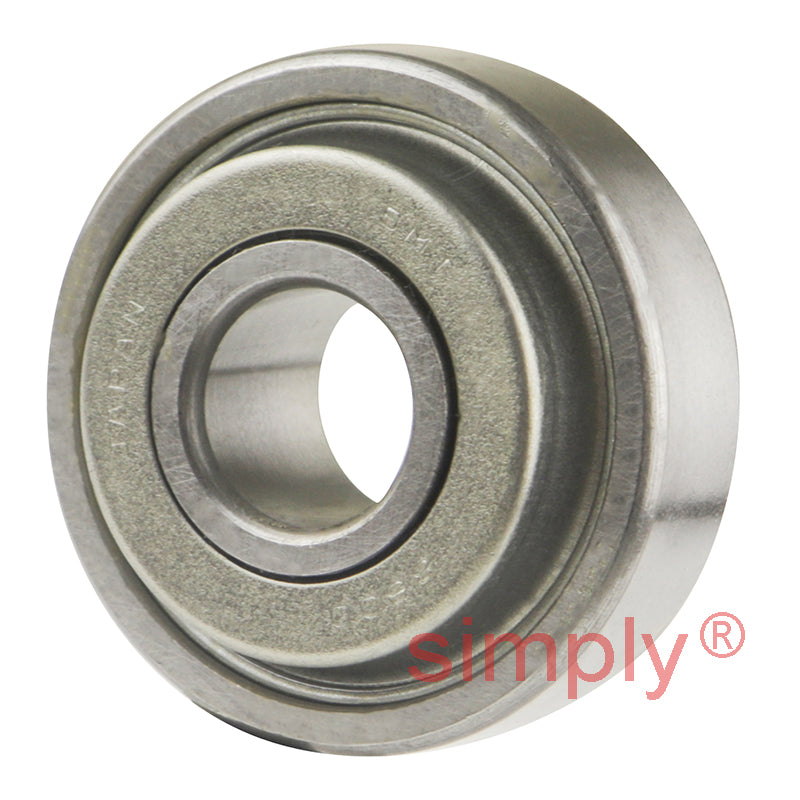

87503 Deep Groove Ball Bearing with Extended Inner Ring Felt Front Seal and Steel Back Seal 17x40x14.29mm
SKU: 87503

87503 Deep Groove Ball Bearing with Extended Inner Ring Felt Front Seal and Steel Back Seal 17x40x14.29mm

€35.32 ex VAT
€35,32
ex VAT

Description

Specialist Shielded Ball Bearing: This bearing consist of chrome steel ball bearings and raceways with an extended inner raceway, additionally the inner raceway is recessed on the back of the bearing. Please refer to the technical tab for dimensions.
Benefits: Felt / Metal shielded on the front, extended inner race, metal shielded on the back.

Technical

B = 17mm = 0.6693 inch
D = 40mm = 1.5748 inch
W = 14.29mm = 0.563 inch
Tolerance +0.0000 to minus = 0.0003 inch
Wo = 0.472 inch
Wi = 0.538 inch
r = 0.025 inch
No. of balls = 8
Ball diameter = 17/64 inch
Static load = 751 kN
Dynamic load = 455 kN
Weight = 0.068 kg
