SKU: AH24036-MB

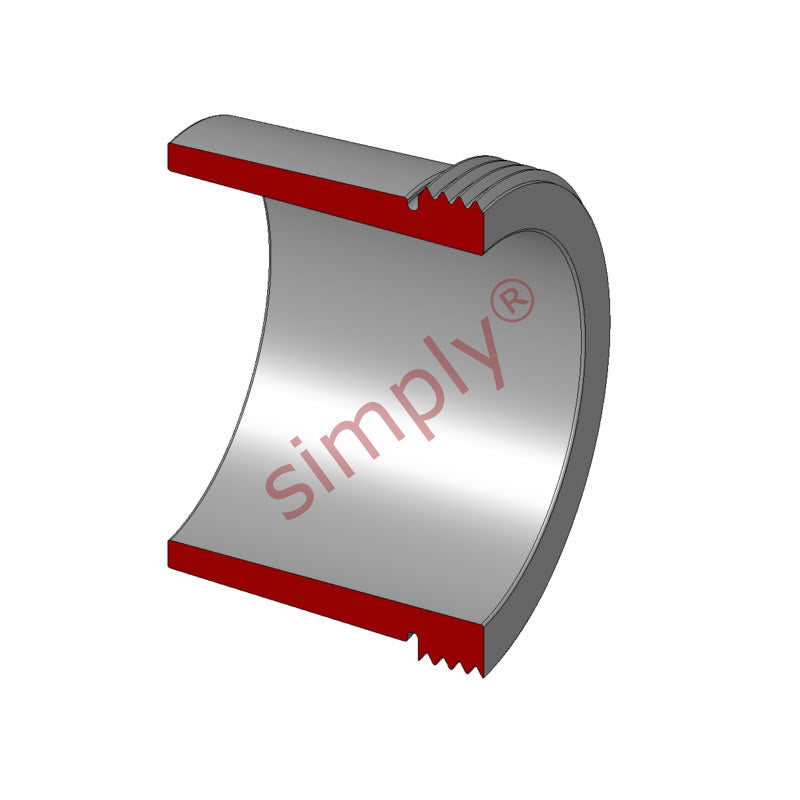

Major Branded AH24036 Withdrawal Sleeve for 170mm shaft
- Regular price
- €682.55 ex VAT
- Sale price
- €682,55
- Regular price
-
Not in stock
Quantity Price Breaks
10
€607.47
19
€573.34
29
€566.52
39
€559.69
49
€552.87
74
€546.04
99
€511.91
199
€505.09
249
€498.26
499
€491.44
999
€477.79
SKU:
AH24036-MB
Major Branded AH24036 Withdrawal Sleeve for 170mm shaft
- Regular price
- €682.55 ex VAT
- Sale price
- €682,55
- Regular price
-
Description
|
Withdrawal Sleeves: Can be used to mount bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position. Differing from adaptor sleeves, they are pushed into the bearing by a locknut on the threaded shaft, they then permit a larger locknut to be used to withdraw the sleeve from within the bearing for ease of dismantling Benefits: Re-useable, adjustable, positive location, easy to dismount |
Technical
| --- | = | Dimensions |
| d1 | = | 170mm |
| d | = | 180mm |
| B1 | = | 116mm |
| B2 | = | 127mm |
| G | = | Thread 190x3mm |
| G1 | = | 16mm |
| Weight | = | 3.2 kg |
| --- | = | Assembly Parts |
| Sleeve | = | AH24036 |
| Nut | = | KM38 |
| Hydraulic nut | = | HMV38E |
| --- | = | Matching Spherical Roller Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=24036K+taper> | = | 24036K< |
| /a> | = | |
| --- | = | Matching Carb Toroidal Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=C4036K30V+taper> | = | C4036K30V< |
| /a> | = |
