SKU: AH24132-MB

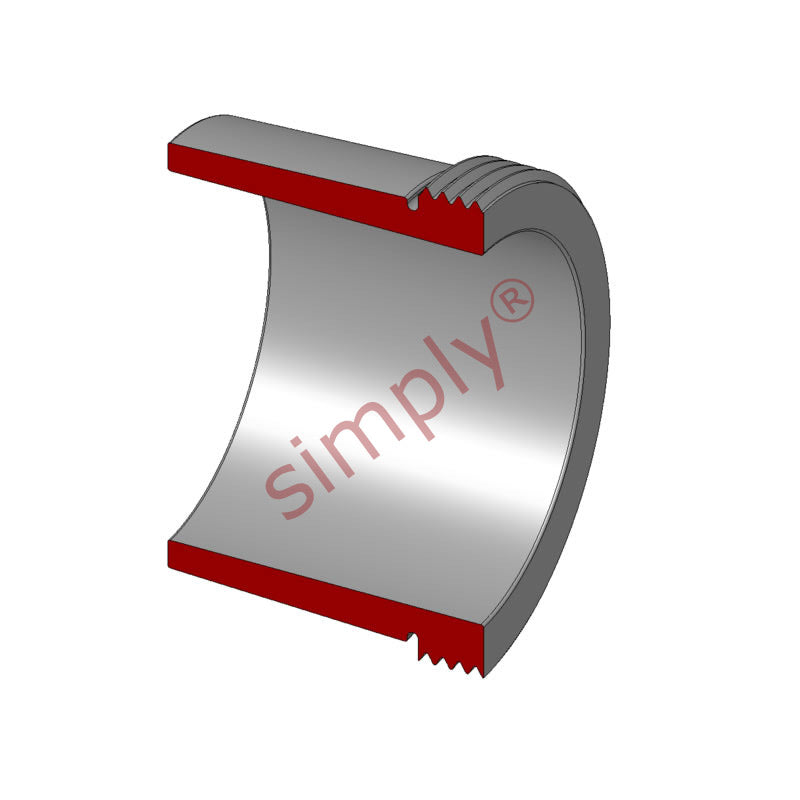

Major Branded AH24132 Withdrawal Sleeve for 150mm shaft
- Regular price
- €395.35 ex VAT
- Sale price
- €395,35
- Regular price
-
ex VAT
Not in stock
Quantity Price Breaks
10
€351.86
19
€332.09
29
€328.14
39
€324.19
49
€320.23
74
€316.28
99
€296.51
199
€292.56
249
€288.61
499
€284.65
999
€276.75
Description
|
Withdrawal Sleeves: Can be used to mount bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position. Differing from adaptor sleeves, they are pushed into the bearing by a locknut on the threaded shaft, they then permit a larger locknut to be used to withdraw the sleeve from within the bearing for ease of dismantling Benefits: Re-useable, adjustable, positive location, easy to dismount |
Technical
| --- | = | Dimensions |
| d1 | = | 150mm |
| d | = | 160mm |
| B1 | = | 124mm |
| B2 | = | 135mm |
| G | = | Thread 170x3mm |
| G1 | = | 15mm |
| Weight | = | 3 kg |
| --- | = | Assembly Parts |
| Sleeve | = | AH24132 |
| Nut | = | KM34 |
| Hydraulic nut | = | HMV34E |
| --- | = | Matching Spherical Roller Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=24132K+taper> | = | 24132K< |
| /a> | = | |
| --- | = | Matching Carb Toroidal Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=C4132K30V+taper> | = | C4132K30V< |
| /a> | = |
