SKU: AHX3122-MB

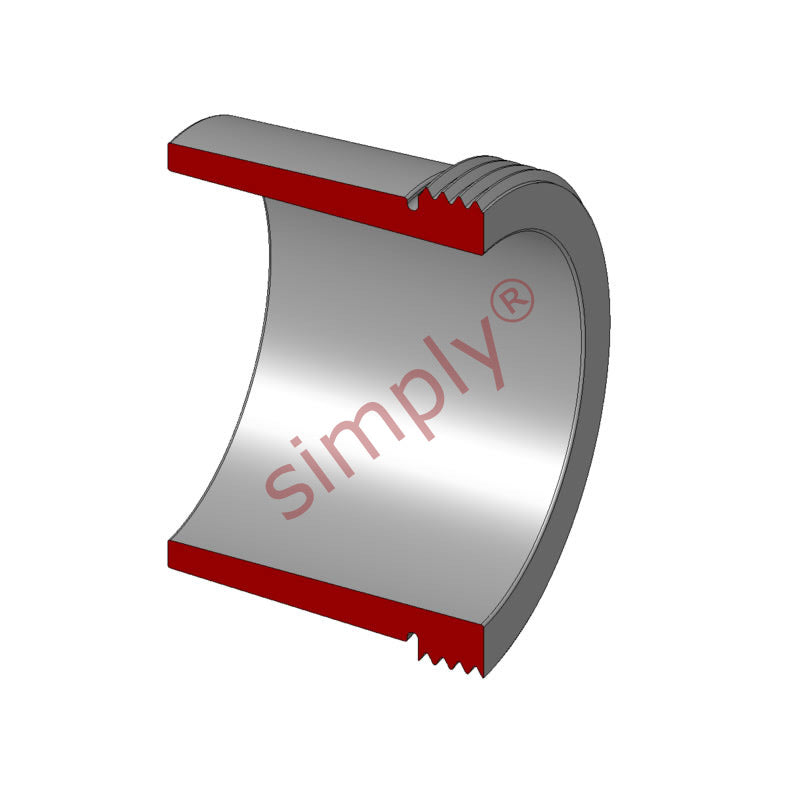

Major Branded AHX3122 Withdrawal Sleeve for 105mm shaft
- Regular price
- €135.00 ex VAT
- Sale price
- €135,00
- Regular price
-
ex VAT
Not in stock
Quantity Price Breaks
10
€120.15
19
€113.40
29
€112.05
39
€110.70
49
€109.35
74
€108.00
99
€101.25
199
€99.90
249
€98.55
499
€97.20
999
€94.50
Description
|
Withdrawal Sleeves: Can be used to mount bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position. Differing from adaptor sleeves, they are pushed into the bearing by a locknut on the threaded shaft, they then permit a larger locknut to be used to withdraw the sleeve from within the bearing for ease of dismantling Benefits: Re-useable, adjustable, positive location, easy to dismount |
Technical
| --- | = | Dimensions |
| d1 | = | 105mm |
| d | = | 110mm |
| B1 | = | 68mm |
| B2 | = | 72mm |
| G | = | Thread 120x2mm |
| G1 | = | 11mm |
| Weight | = | 0.76 kg |
| --- | = | Assembly Parts |
| Sleeve | = | AHX3122 |
| Nut | = | KM24 |
| Hydraulic nut | = | HMV24E |
| --- | = | Matching Self Aligning Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=2222K+taper> | = | 2222K< |
| /a> | = | |
| --- | = | Matching Spherical Roller Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=23122K+taper> | = | 23122K< |
| /a> | = | |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=22222K+taper> | = | 22222K< |
| /a> | = | |
| --- | = | Matching Carb Toroidal Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=C3022K+taper> | = | C3022K< |
| /a> | = | |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=C2222K+taper> | = | C2222K< |
| /a> | = |
