SKU: AS120155-MB

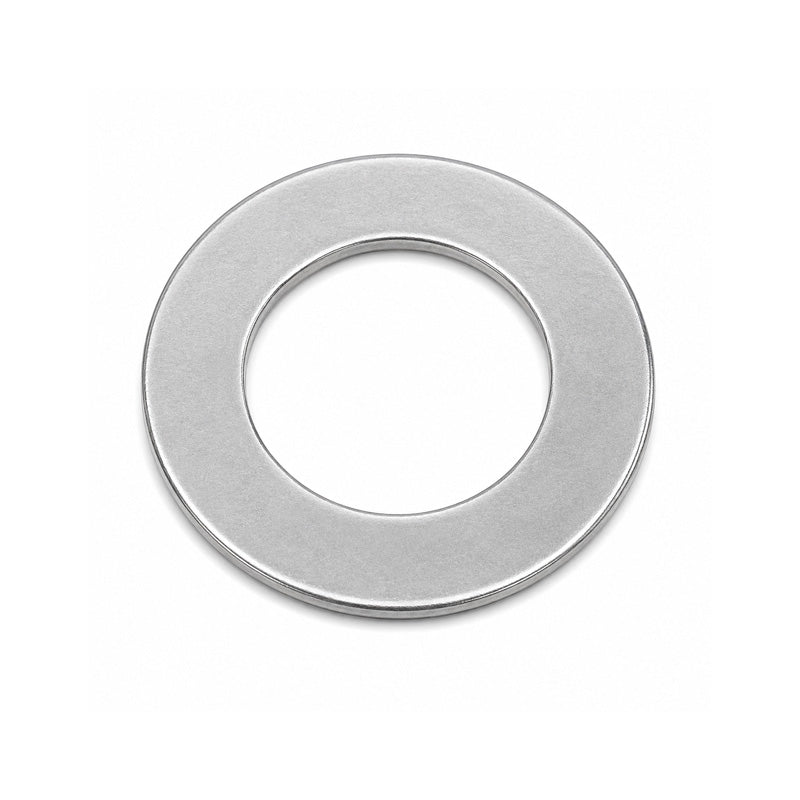

AS120155 Major Brand Thrust Washer Series AS 120x155x1mm
- Regular price
- €26.86 ex VAT
- Sale price
- €26,86
- Regular price
-
In stock
Quantity Price Breaks
10
€23.91
19
€22.56
29
€22.29
39
€22.03
49
€21.76
74
€21.49
99
€20.15
199
€19.88
249
€19.61
499
€19.34
999
€18.80
SKU:
AS120155-MB
AS120155 Major Brand Thrust Washer Series AS 120x155x1mm
- Regular price
- €26.86 ex VAT
- Sale price
- €26,86
- Regular price
-
Description
|
AS Series Thrust Washers: Made of spring steel (equivalent to AISI 1074 / SAE 5165) these thrust washers are hardened and polished and are only 1mm thick. These washers enable a very economic bearing arrangements and serve as both shaft and housing raceways having moderate stiffness and running accuracy. Benefits: Economical in the use of space, accurately machined and polished, hardened spring steel, moderate running accuracy and stiffness, inexpensive. |
Technical
| d | = | 120mm |
| d1 | = | 145mm |
| D | = | 155mm |
| D1 | = | 122mm |
| B | = | 1mm |
| r1r2 | = | 1mm |
| Material | = | Spring Steel (AISI 1074 / SAE 5165) |
| Weight | = | 415 g |
