SKU: AS6085-MB

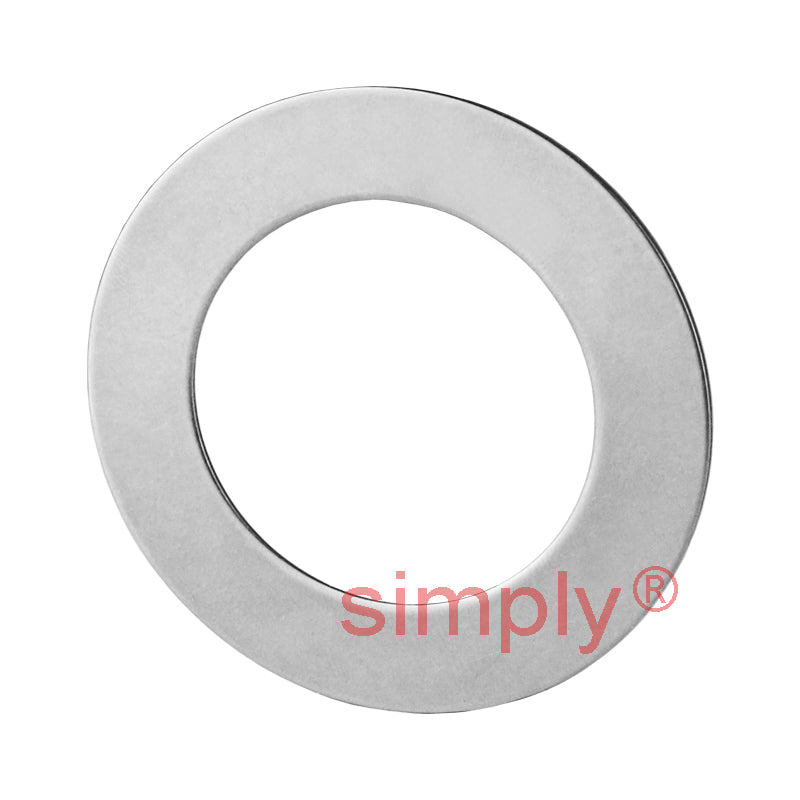

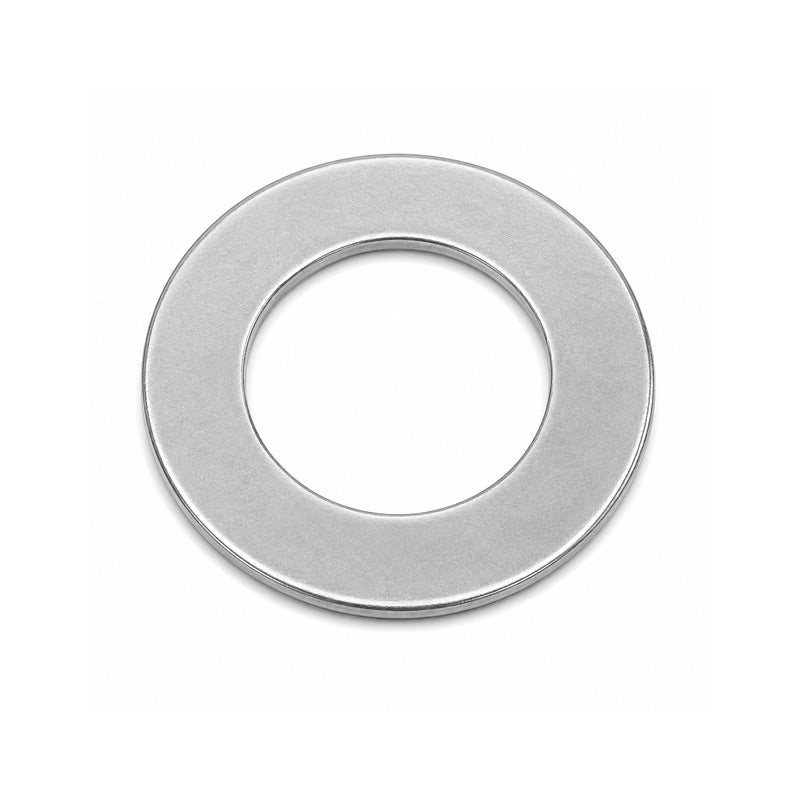

AS6085 Major Brand Thrust Washer Series AS 60x85x1mm
- Regular price
- €4.43 ex VAT
- Sale price
- €4,43
- Regular price
-
In stock
Quantity Price Breaks
10
€3.94
19
€3.72
29
€3.68
39
€3.63
49
€3.59
74
€3.54
99
€3.32
199
€3.28
249
€3.23
499
€3.19
999
€3.10
SKU:
AS6085-MB
AS6085 Major Brand Thrust Washer Series AS 60x85x1mm
- Regular price
- €4.43 ex VAT
- Sale price
- €4,43
- Regular price
-
Description
|
AS Series Thrust Washers: Made of spring steel (equivalent to AISI 1074 / SAE 5165) these thrust washers are hardened and polished and are only 1mm thick. These washers enable a very economic bearing arrangements and serve as both shaft and housing raceways having moderate stiffness and running accuracy. Benefits: Economical in the use of space, accurately machined and polished, hardened spring steel, moderate running accuracy and stiffness, inexpensive. |
Technical
| d | = | 60mm |
| d1 | = | 85mm |
| D | = | 85mm |
| D1 | = | 62mm |
| B | = | 1mm |
| r1r2 | = | 1mm |
| Material | = | Spring Steel (AISI 1074 / SAE 5165) |
| Weight | = | 97 g |
