SKU: AS7095-MB

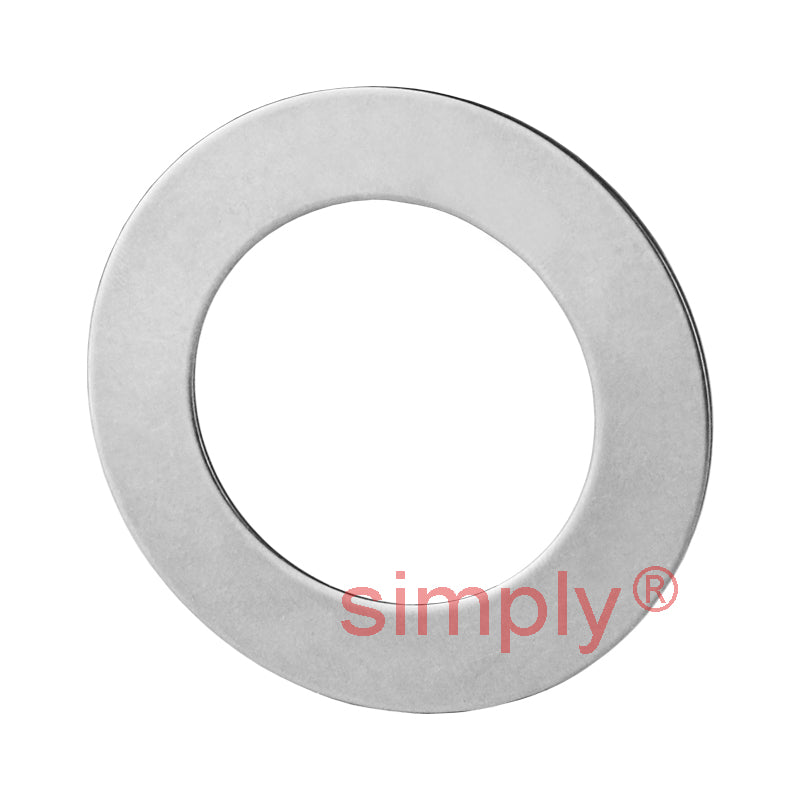

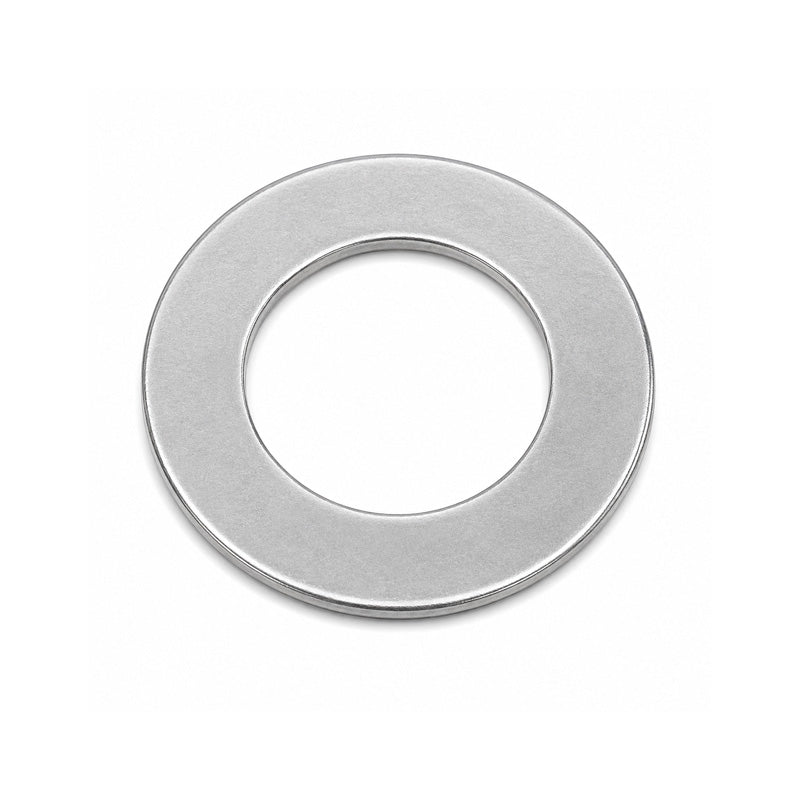

AS7095 Major Brand Thrust Washer Series AS 70x95x1mm
- Regular price
- €6.41 ex VAT
- Sale price
- €6,41
- Regular price
-
In stock
Quantity Price Breaks
10+
€5.70
19+
€5.38
29+
€5.32
39+
€5.26
49+
€5.19
74+
€5.13
99+
€4.81
199+
€4.74
249+
€4.68
499+
€4.62
999+
€4.49
SKU:
AS7095-MB
AS7095 Major Brand Thrust Washer Series AS 70x95x1mm
- Regular price
- €6.41 ex VAT
- Sale price
- €6,41
- Regular price
-
Description
|
AS Series Thrust Washers: Made of spring steel (equivalent to AISI 1074 / SAE 5165) these thrust washers are hardened and polished and are only 1mm thick. These washers enable a very economic bearing arrangements and serve as both shaft and housing raceways having moderate stiffness and running accuracy. Benefits: Economical in the use of space, accurately machined and polished, hardened spring steel, moderate running accuracy and stiffness, inexpensive. |
Technical
| d | = | 70mm |
| d1 | = | 95mm |
| D | = | 95mm |
| D1 | = | 72mm |
| B | = | 1mm |
| r1r2 | = | 1mm |
| Material | = | Spring Steel (AISI 1074 / SAE 5165) |
| Weight | = | 125 g |
