SKU: AS85110-MB

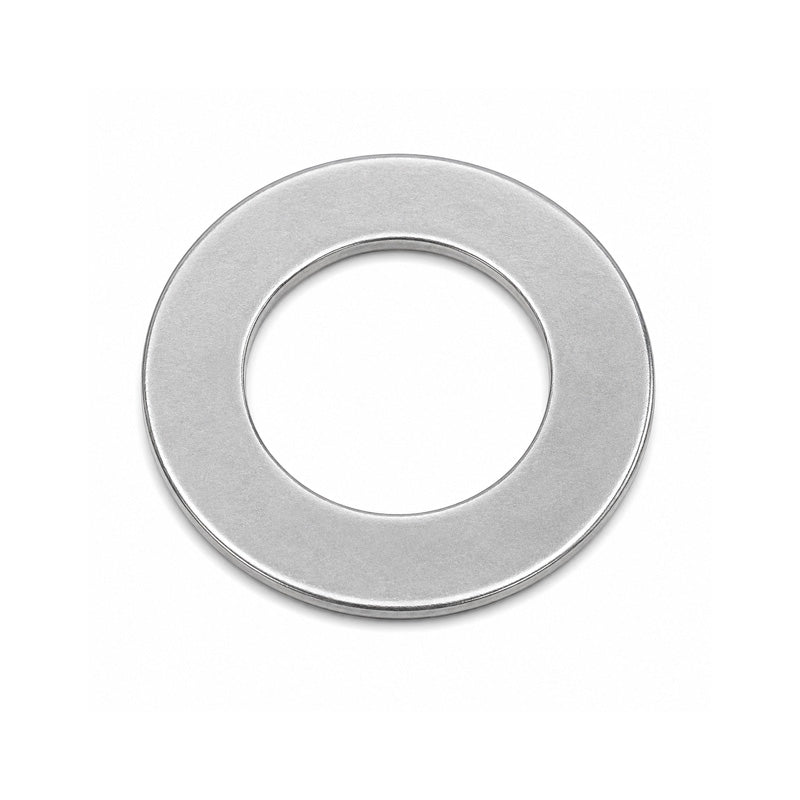

AS85110 Major Brand Thrust Washer Series AS 85x110x1mm
- Regular price
- €11.43 ex VAT
- Sale price
- €11,43
- Regular price
-
In stock
Quantity Price Breaks
10+
€10.17
19+
€9.60
29+
€9.49
39+
€9.37
49+
€9.26
74+
€9.14
99+
€8.57
199+
€8.46
249+
€8.34
499+
€8.23
999+
€8.00
SKU:
AS85110-MB
AS85110 Major Brand Thrust Washer Series AS 85x110x1mm
- Regular price
- €11.43 ex VAT
- Sale price
- €11,43
- Regular price
-
Description
|
AS Series Thrust Washers: Made of spring steel (equivalent to AISI 1074 / SAE 5165) these thrust washers are hardened and polished and are only 1mm thick. These washers enable a very economic bearing arrangements and serve as both shaft and housing raceways having moderate stiffness and running accuracy. Benefits: Economical in the use of space, accurately machined and polished, hardened spring steel, moderate running accuracy and stiffness, inexpensive. |
Technical
| d | = | 85mm |
| d1 | = | 110mm |
| D | = | 110mm |
| D1 | = | 87mm |
| B | = | 1mm |
| r1r2 | = | 1mm |
| Material | = | Spring Steel (AISI 1074 / SAE 5165) |
| Weight | = | 160 g |
