SKU: ASFD201-NTN

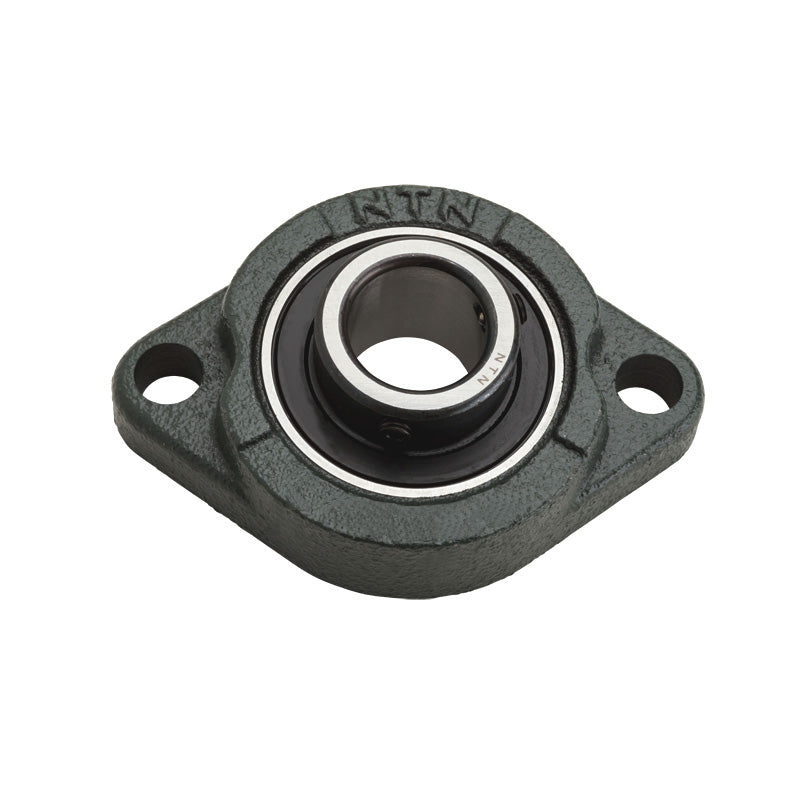

NTN ASFD201 Metric Two Bolt Oval Cast Iron Flange Housing with 12mm Bore Insert - Allow 2-3 Days
- Regular price
- €25.43 ex VAT
- Sale price
- €25,43
- Regular price
-
Not in stock
Quantity Price Breaks
3
€22.63
4
€21.36
9
€21.11
19
€20.85
49
€20.60
99
€20.34
499
€19.07
999
€18.82
1999
€18.56
2999
€18.31
4999
€17.80
SKU:
ASFD201-NTN
NTN ASFD201 Metric Two Bolt Oval Cast Iron Flange Housing with 12mm Bore Insert - Allow 2-3 Days
- Regular price
- €25.43 ex VAT
- Sale price
- €25,43
- Regular price
-
Description
ASFD200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| Shaft diameter | = | 12mm |
| H | = | 81mm |
| J | = | 63mm |
| A< | = | sub> |
| 2< | = | /sub> |
| = | 8.5mm | |
| A | = | 15mm |
| N | = | 7mm |
| L | = | 59mm |
| A< | = | sub> |
| 0< | = | /sub> |
| = | 24.5mm | |
| B | = | 22mm |
| S | = | 6mm |
| Fixing bolt | = | M6 |
| Mass | = | 0.3 kg |
