SKU: ASFD206-NTN

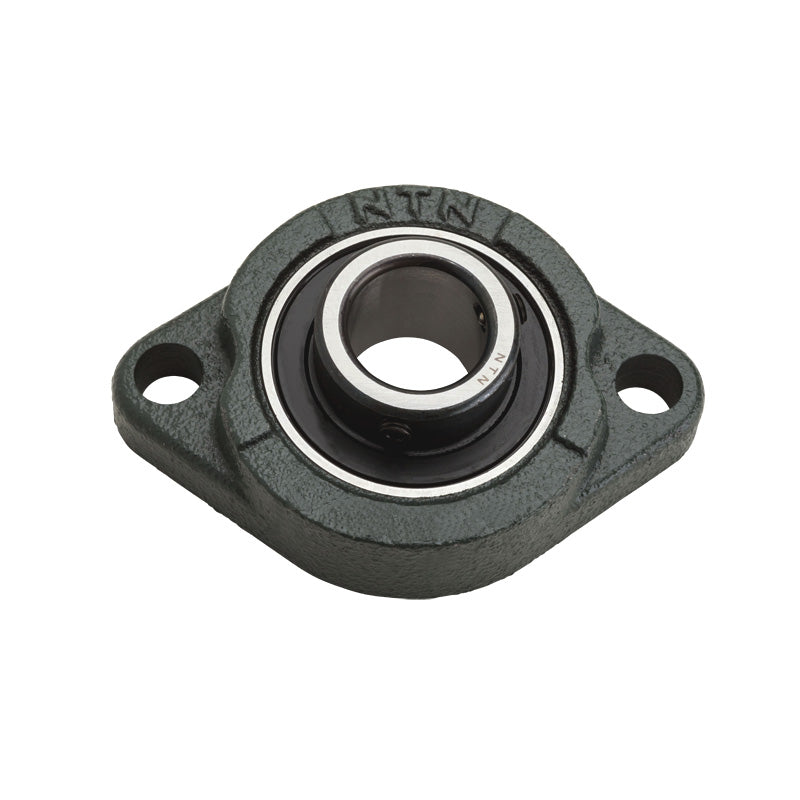

NTN ASFD206 Metric Two Bolt Oval Cast Iron Flange Housing with 30mm Bore Insert - Allow 2-3 Days
- Regular price
- €34.52 ex VAT
- Sale price
- €34,52
- Regular price
-
Not in stock
Quantity Price Breaks
3
€30.72
4
€29.00
9
€28.65
19
€28.31
49
€27.96
99
€27.62
499
€25.89
999
€25.54
1999
€25.20
2999
€24.85
4999
€24.16
SKU:
ASFD206-NTN
NTN ASFD206 Metric Two Bolt Oval Cast Iron Flange Housing with 30mm Bore Insert - Allow 2-3 Days
- Regular price
- €34.52 ex VAT
- Sale price
- €34,52
- Regular price
-
Description
ASFD200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| Shaft diameter | = | 30mm |
| H | = | 113mm |
| J | = | 90mm |
| A< | = | sub> |
| 2< | = | /sub> |
| = | 12mm | |
| A | = | 21mm |
| N | = | 12mm |
| L | = | 84mm |
| A< | = | sub> |
| 0< | = | /sub> |
| = | 33mm | |
| B | = | 29mm |
| S | = | 8mm |
| Fixing bolt | = | M10 |
| Mass | = | 0.8 kg |
