Major Brand AX2744 Thin Needle Roller Thrust Bearing 27x44x2.8mm
Major Brand AX2744 Thin Needle Roller Thrust Bearing 27x44x2.8mm
Major Brand AX2744 Thin Needle Roller Thrust Bearing 27x44x2.8mm
Major Brand AX2744 Thin Needle Roller Thrust Bearing 27x44x2.8mm

SKU: AX2744-MB

Major Brand AX2744 Thin Needle Roller Thrust Bearing 27x44x2.8mm

€28.97 ex VAT
€28,97
ex VAT
In stock

Quantity Price Breaks

10 €25.78
19 €24.33
29 €24.05
39 €23.76
49 €23.47
74 €23.18
99 €21.73
199 €21.44
249 €21.15
499 €20.86
999 €20.28
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Major Brand AX2744 Thin Needle Roller Thrust Bearing 27x44x2.8mm
Major Brand AX2744 Thin Needle Roller Thrust Bearing 27x44x2.8mm
SKU: AX2744-MB

Major Brand AX2744 Thin Needle Roller Thrust Bearing 27x44x2.8mm

€28.97 ex VAT
€28,97
ex VAT

Description

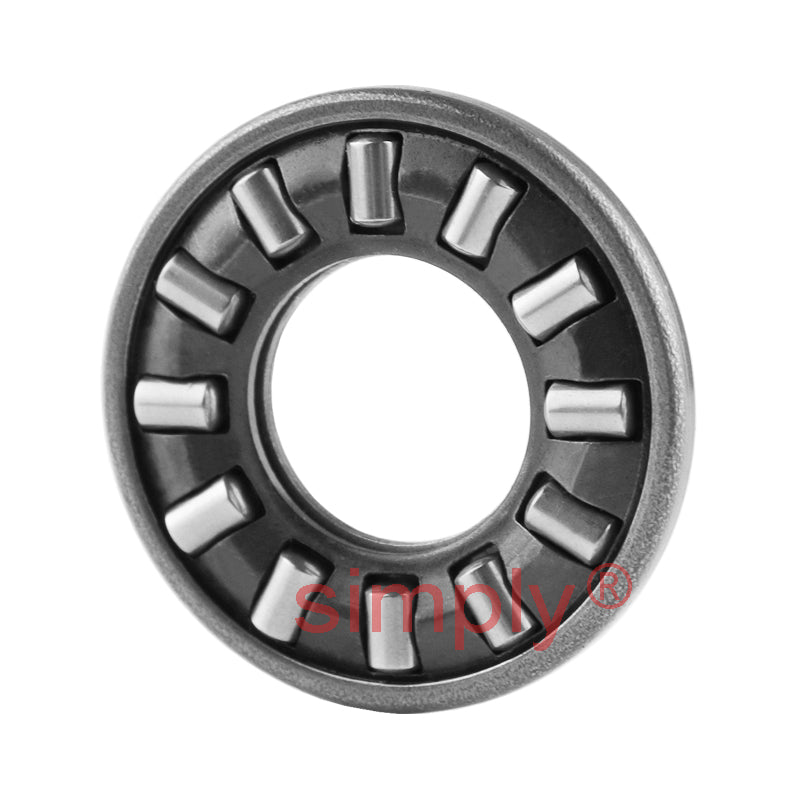

AX Thin Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are manufactured with an integrated washer and a uniform cage that reliably guides many needle rollers. The rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevent any edge damage occurrence.
Benefits: Cost-effective thrust solution, wide range, low profile, high load bearing.

Technical

Dc1 = 27mm
D = 44mm
B1 = 2.8mm
Eb = 30mm
Ea = 39.6mm
Dynamic load = 13.7 kN
Static load = 52 kN
Speed rating in oil = 7200 rpm
Mass = 0.012 kg
